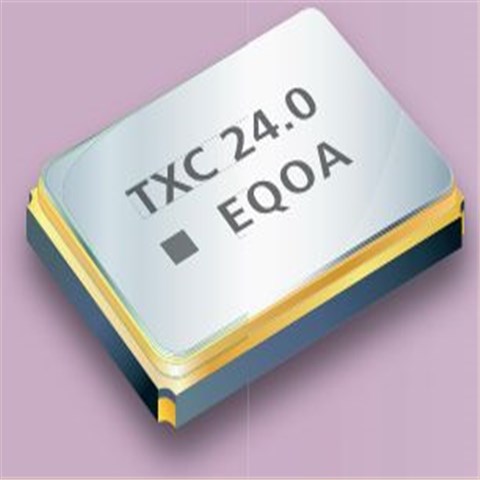

臺產晶技晶振,AB-16.000MALE-T晶振,車載香薰系統晶振，AB系列SMD，縫封晶體，5.0* 3.2* 0.9 mm，特點，可靠的縫封陶瓷封裝。工作溫度范圍寬。惡劣環境下性能優越可靠。應用范圍:TPMS, ECM, ABS，傳感器模塊。符合rohs標準/不含鉛臺灣TXC晶振公司，晶技晶振，無源晶振，5032晶振，AB-16.000MALE-T晶振，汽車晶振，汽車電動天窗控制系統晶振，臺灣晶振，貼片晶振，四腳晶振，石英晶振，高品質晶振，車載多媒體晶振，行車記錄儀晶振，低損耗晶振，耐高溫晶振，耐沖擊晶振。

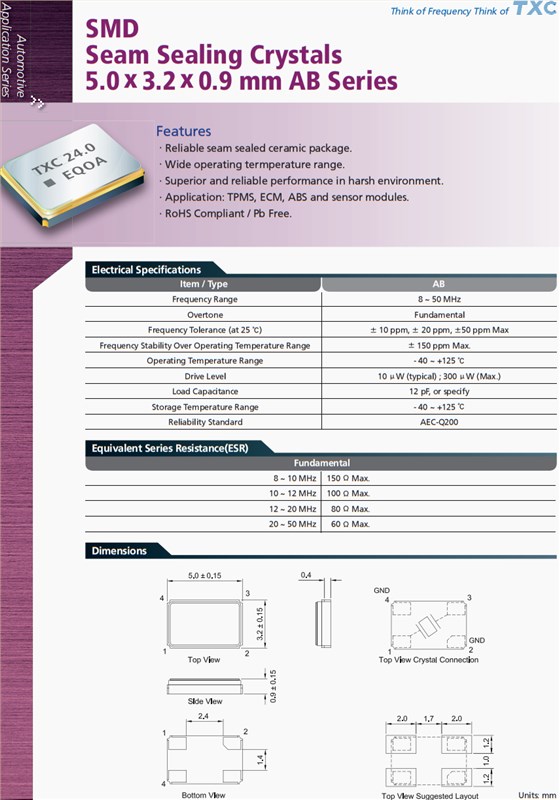

臺產晶技晶振,AB-16.000MALE-T晶振,車載香薰系統晶振

型號	AB
頻率范圍	8 ~ 50 MHz
工作模式	Fundamental
頻率容差	± 10 ppm, ± 20 ppm, ±50 ppm Max
溫度范圍內的頻率穩定度	± 150 ppm Max.
工作溫度	- 40 ~ +125 ℃
驅動電平	10 μW (typical) ; 300 μW (Max.)
負載電容	12 pF, or specify
儲存溫度范圍	- 40 ~ +125 ℃
可靠性標準	AEC-Q200

臺產晶技晶振,AB-16.000MALE-T晶振,車載香薰系統晶振

TXC原廠編碼	生產商品牌	Series	頻率	頻率穩定度	頻率容差	負載電容	工作溫度
AB-16.000MALE-T	TXC晶振	AB	16MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-25.000MAGE-T	TXC晶振	AB	25MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-12.000MALE-T	TXC晶振	AB	12MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-24.000MAGE-T	TXC晶振	AB	24MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-16.000MAGE-T	TXC晶振	AB	16MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-13.225625MAGE-T	TXC晶振	AB	13.225625MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-8.000MAGK-T	TXC晶振	AB	8MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
AB-20.000MAHJ-T	TXC晶振	AB	20MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
AB-13.560MENE-T	TXC晶振	AB	13.56MHz	±50ppm	±10ppm	12pF	-40°C ~ 125°C
AB-24.576MAGQ-T	TXC晶振	AB	24.576MHz	±50ppm	±30ppm	10pF	-40°C ~ 85°C
AB-19.680MALE-T	TXC晶振	AB	19.68MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-26.000MAGE-T	TXC晶振	AB	26MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-37.500MAGE-T	TXC晶振	AB	37.5MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-13.560MAGE-T	TXC晶振	AB	13.56MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-15.360MAGE-T	TXC晶振	AB	15.36MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-18.000MAGH-T	TXC晶振	AB	18MHz	±50ppm	±30ppm	15pF	-40°C ~ 85°C
AB-18.432MAGE-T	TXC晶振	AB	18.432MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-20.000MAGE-T	TXC晶振	AB	20MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-27.000MAGE-T	TXC晶振	AB	27MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-11.0592MAGQ-T	TXC晶振	AB	11.0592MHz	±50ppm	±30ppm	10pF	-40°C ~ 85°C
AB-13.560MALE-T	TXC晶振	AB	13.56MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-10.000MAGE-T	TXC晶振	AB	10MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-12.000MAGE-T	TXC晶振	AB	12MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-12.000MAME-T	TXC晶振	AB	12MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-13.125MAME-T	TXC晶振	AB	13.125MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-13.225625MAHE-T	TXC晶振	AB	13.225625MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-13.528750MAHQ-T	TXC晶振	AB	13.52875MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AB-13.560MAHE-T	TXC晶振	AB	13.56MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-13.560MANE-T	TXC晶振	AB	13.56MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
AB-13.560MANH-T	TXC晶振	AB	13.56MHz	±50ppm	±30ppm	15pF	-40°C ~ 125°C
AB-13.580MANE-T	TXC晶振	AB	13.58MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
AB-16.000MAME-T	TXC晶振	AB	16MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-16.000MAPJ-T	TXC晶振	AB	16MHz	±50ppm	±30ppm	18pF	-40°C ~ 105°C
AB-16.000MENQ-T	TXC晶振	AB	16MHz	±50ppm	±10ppm	10pF	-40°C ~ 125°C
AB-16.000MFNE-T	TXC晶振	AB	16MHz	±50ppm	±15ppm	12pF	-40°C ~ 125°C
AB-16.0132MEMQ-T	TXC晶振	AB	16.0132MHz	±100ppm	±10ppm	10pF	-40°C ~ 125°C
AB-18.000MAHH-T	TXC晶振	AB	18MHz	±30ppm	±30ppm	15pF	-40°C ~ 85°C
AB-18.080MEME-T	TXC晶振	AB	18.08MHz	±100ppm	±10ppm	12pF	-40°C ~ 125°C
AB-19.707894MENV-T	TXC晶振	AB	19.707894MHz	±50ppm	±10ppm	8pF	-40°C ~ 125°C
AB-20.000MAHE-T	TXC晶振	AB	20MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-20.000MALE-T	TXC晶振	AB	20MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-22.600MEMQ-T	TXC晶振	AB	22.66MHz	±100ppm	±10ppm	10pF	-40°C ~ 125°C
AB-24.000MAHE-T	TXC晶振	AB	24MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-24.19066MENE-T	TXC晶振	AB	24.19066MHz	±50ppm	±10ppm	12pF	-40°C ~ 125°C
AB-24.576MEHQ-T	TXC晶振	AB	24.576MHz	±30ppm	±10ppm	10pF	-40°C ~ 85°C
AB-25.000MDHI-T	TXC晶振	AB	25MHz	±30ppm	±20ppm	16pF	-40°C ~ 85°C
AB-25.000MDPE-T	TXC晶振	AB	25MHz	±50ppm	±20ppm	12pF	-40°C ~ 105°C
AB-14.31818MAHQ-T	TXC晶振	AB	14.318MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AB-14.31818MAME-T	TXC晶振	AB	14.318MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-16.000MANE-T	TXC晶振	AB	16MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
AB-19.200MAGE-T	TXC晶振	AB	19.2MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-19.68750MEME-T	TXC晶振	AB	19.687MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
AB-24.000MAPE-T	TXC晶振	AB	24MHz	±50ppm	±30ppm	12pF	-40°C ~ 105°C
AB-8.000MANV-T	TXC晶振	AB	8MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
AB-8.192MAHJ-T	TXC晶振	AB	8.192MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
AB-14.31818MALE-T	TXC晶振	AB	14.31818MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-10.000MALE-T	TXC晶振	AB	10MHz	±150ppm	±30ppm	12pF	-40°C ~ 125°C
AB-14.318180MAHK-T	TXC晶振	AB	14.31818MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AB-14.318180MAME-T	TXC晶振	AB	14.31818MHz	±100ppm	±30ppm	12pF	-40°C ~ 125°C
AB-19.2000MAGE-T	TXC晶振	AB	19.2MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AB-19.687500MEME-T	TXC晶振	AB	19.6875MHz	±100ppm	±10ppm	12pF	-40°C ~ 125°C
AB-20.000MAMK-T	TXC晶振	AB	20MHz	±100ppm	±30ppm	20pF	-40°C ~ 125°C
AB-24.576MEIQ-T	TXC晶振	AB	24.576MHz	±20ppm	±10ppm	10pF	-40°C ~ 85°C
AB-26.000MEIE-T	TXC晶振	AB	26MHz	±20ppm	±10ppm	12pF	-40°C ~ 85°C
AB-27.000MAHE-T	TXC晶振	AB	27MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AB-28.63636MAMJ-T	TXC晶振	AB	28.63636MHz	±100ppm	±30ppm	18pF	-40°C ~ 125°C
AB-37.500MEHD-T	TXC晶振	AB	37.5MHz	±30ppm	±10ppm	11pF	-40°C ~ 85°C
AB-37.500MEHE-T	TXC晶振	AB	37.5MHz	±30ppm	±10ppm	12pF	-40°C ~ 85°C
AB-40.000MDHE-T	TXC晶振	AB	40MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
