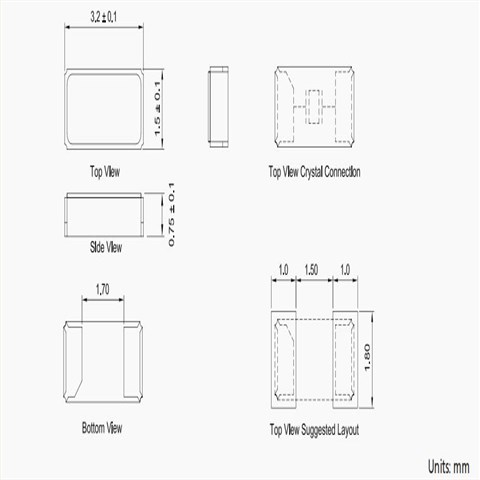

車載多媒體晶振,TXC音叉晶體,AH-32.768KDZF-T晶振，臺灣TXC晶振公司，晶技晶振，有源晶振，5032晶振，AH-32.768KDZF-T晶振，汽車晶振，汽車電動天窗控制系統晶振，臺灣晶振，貼片晶振，音叉晶振，32.768KHz晶振，二腳晶振，石英晶振，高品質晶振，車載多媒體晶振，行車記錄儀晶振，低損耗晶振，耐高溫晶振，耐沖擊晶振。AH系列SMD,kHz晶體，3.2 x 1.5 x 0.75 mm，功能，2片表面貼裝封裝。高可靠的環保性能。符合RoHS標準/無鉛。AECQ200認證用于汽車RTC應用。

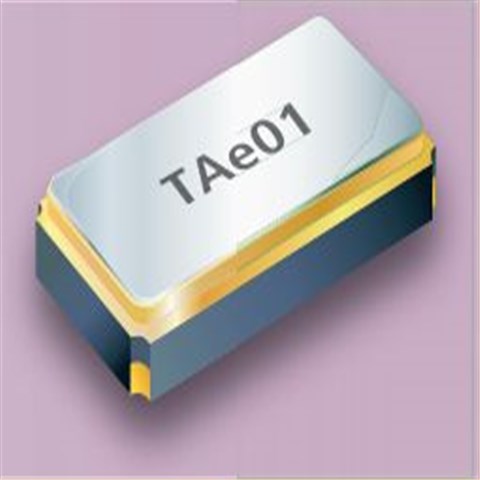

車載多媒體晶振,TXC音叉晶體,AH-32.768KDZF-T晶振

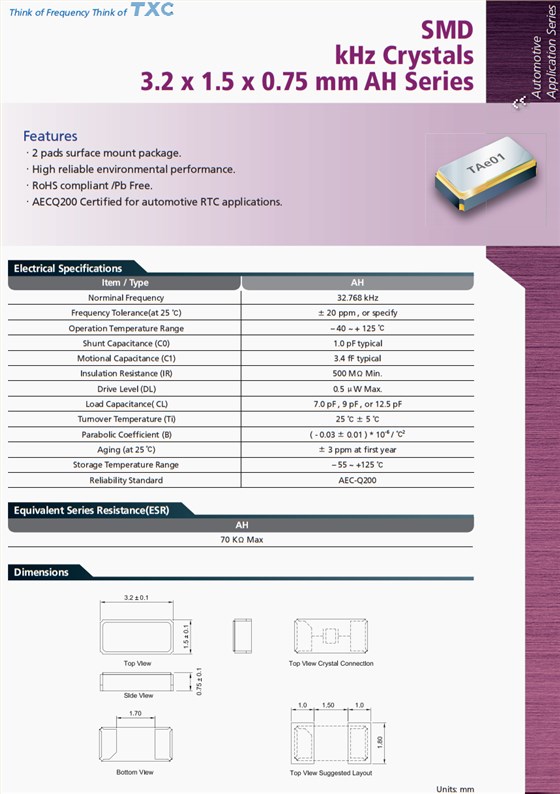

型號
AH
頻率
32.768 kHz
頻率容差
± 20 ppm , or specify
工作溫度
– 40 ~ + 125 ℃
分流電容
1.0 pF typical
運動電容
3.4 fF typical
絕緣電阻
500 MΩ Min.
驅動電平
0.5 μW Max.
負載電容
7.0 pF , 9 pF , or 12.5 pF
周期溫度
25 ℃ ± 5 ℃
分解代謝系數
( - 0.03 ± 0.01 ) * 10-6 / ℃2
老化
± 3 ppmat ?rst year
儲存溫度
– 55 ~ +125 ℃
可靠性標準
AEC-Q200
車載多媒體晶振,TXC音叉晶體,AH-32.768KDZF-T晶振
| TXC原廠編碼 | 生產商品牌 | Series | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 | 工作溫度 |
| AH-32.768KDZF-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AH-32.768KDZB-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 6pF | -40°C ~ 85°C |
| AH-32.768KDZY-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 7pF | -40°C ~ 85°C |
| AH-32.768KEWC-T | TXC CORPORATION | AH | 32.768kHz | - | ±10ppm | 9pF | -40°C ~ 125°C |
| AH-32.768KEWF-T | TXC CORPORATION | AH | 32.768kHz | - | ±10ppm | 12.5pF | -40°C ~ 125°C |
| AH-32.768KEZC-T | TXC CORPORATION | AH | 32.768kHz | - | ±10ppm | 9pF | -40°C ~ 85°C |
| AH-32.768KEZF-T | TXC CORPORATION | AH | 32.768kHz | - | ±10ppm | 12.5pF | -40°C ~ 85°C |
| AH-32.768KDWB-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 6pF | -40°C ~ 125°C |
| AH-32.768KDWC-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 9pF | -40°C ~ 125°C |
| AH-32.768KDWF-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 12.5pF | -40°C ~ 125°C |
| AH-32.768KDZC-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 9pF | -40°C ~ 85°C |
| AH-32.768KBZF-T | TXC CORPORATION | AH | 32.768kHz | - | ±50ppm | 12.5pF | -40°C ~ 85°C |
| AH-32.768KAZF-T | TXC CORPORATION | AH | 32.768kHz | - | ±30ppm | 12.5pF | -40°C ~ 85°C |
| AH03200003 | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AH03270003 | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AH03270004 | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 9pF | -40°C ~ 125°C |
