CM200S32.768KDZFT-8038mm-西鐵城無源晶振-32.768KHz,CM200S32.768KDZFT晶振,8038mm晶振,日本西鐵城晶振,無源晶振,32.768KHz晶振,石英SMD晶振,負載12.5pf ,精度20ppm,工作溫度-40~85°C,耐高溫晶振,低老化晶振,實時時鐘晶振,數字水表晶振,多媒體影音設備晶振,家用電視機頂盒晶振.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

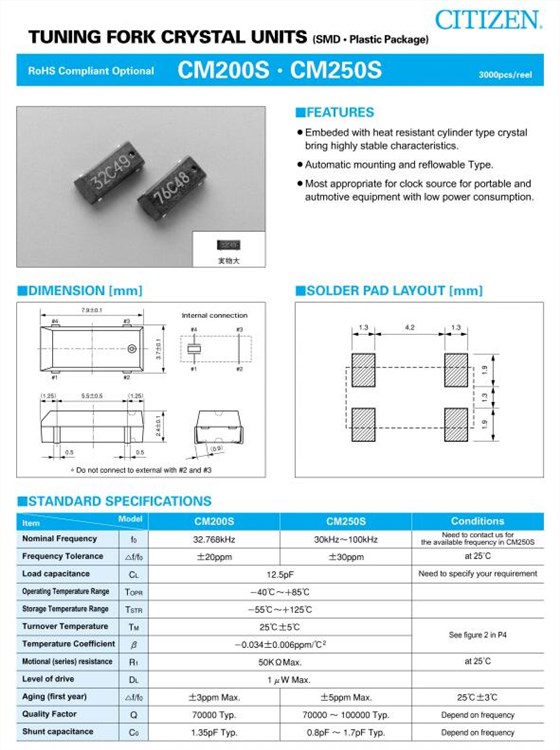

CM200C32768AZFT-32.768KHz-12.5pf-8038mm 參數

項目	符號	CM200S
頻率	f0	32.768KHz
頻率公差	△f/f0	±20ppm
負載電容	CL	12.5pf
工作溫度	TOPR	－40℃～＋85℃
保存溫度	TSTR	－55℃～＋125℃
點溫度	TM	25℃±5℃
溫度系數	β	-0.034±0.006ppm/℃ 2
串聯阻力	R1	50KΩ Max.
驅動級別	DL	1μW Max
老化（第一年）	△f/f0	±3ppm Max.
并聯電容	C0	1.35pF Typ.

CM200C32768AZFT-32.768KHz-12.5pf-8038mm尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率偏差	負載電容	電阻	工作溫度
CM200S32.768KDZFT	Citizen 晶振	CM200S	32.768kHz	±20ppm	12.5pF	50 kOhm	-40°C ~ 85°C
CM200S32.768KDZFT	Citizen 晶振	CM200S	32.768kHz	±20ppm	12.5pF	50 kOhm	-40°C ~ 85°C
CM200S32.768KDZFT	Citizen 晶振	CM200S	32.768kHz	±20ppm	12.5pF	50 kOhm	-40°C ~ 85°C
CM200S32.768KDZBTR	Citizen 晶振	CM200S	32.768kHz	±20ppm	6pF	50 kOhm	-40°C ~ 85°C
CM200S32.768KDZBTR	Citizen 晶振	CM200S	32.768kHz	±20ppm	6pF	50 kOhm	-40°C ~ 85°C
CM200S32.768KDZBTR	Citizen 晶振	CM200S	32.768kHz	±20ppm	6pF	50 kOhm	-40°C ~ 85°C
CM200S-32.768KDZF-UT	Citizen 晶振	CM200S	32.768kHz	±20ppm	12.5pF	50 kOhm	-40°C ~ 85°C
CM200S-32.768KDZF-UT	Citizen 晶振	CM200S	32.768kHz	±20ppm	12.5pF	50 kOhm	-40°C ~ 85°C
CM200S-32.768KDZF-UT	Citizen 晶振	CM200S	32.768kHz	±20ppm	12.5pF	50 kOhm	-40°C ~ 85°C
CM200S-32.768KDZB-UT	Citizen 晶振	CM200S	32.768kHz	±20ppm	6pF	50 kOhm	-40°C ~ 85°C
CM200S-32.768KDZB-UT	Citizen 晶振	CM200S	32.768kHz	±20ppm	6pF	50 kOhm	-40°C ~ 85°C
CM200S-32.768KDZB-UT	Citizen 晶振	CM200S	32.768kHz	±20ppm	6pF	50 kOhm	-40°C ~ 85°C
CM200S32.768KDZCB	Citizen 晶振	CM200S	32.768kHz	±20ppm	9pF	50 kOhm	-40°C ~ 85°C
CM200S-32.768KAZF-UT	Citizen 晶振	CM200S	32.768kHz	±30ppm	12.5pF	50 kOhm	-40°C ~ 85°C
CM200S-32.768KAZF-UT	Citizen 晶振	CM200S	32.768kHz	±30ppm	12.5pF	50 kOhm	-40°C ~ 85°C
CM200S-32.768KAZF-UT	Citizen 晶振	CM200S	32.768kHz	±30ppm	12.5pF	50 kOhm	-40°C ~ 85°C
