ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf,ELM12W-38.000MHz-6-R120-D7X-T晶振,1612mm晶振,頻率38MHz,負載6pf,超小型晶振,AEL進口晶振,小型通信設備晶振,無線網絡晶振,智能穿戴設備晶振,物聯網晶振.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

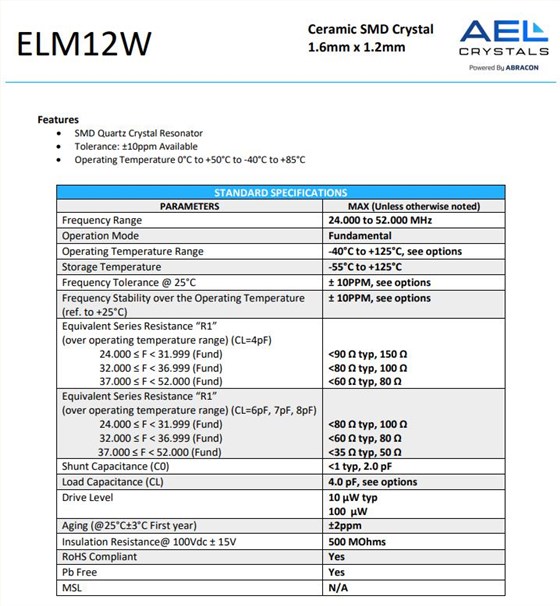

ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf參數表

規格參數			MAX(除非有特殊說明)
頻率			38MHz
操作方式			Fundamental
工作溫度			-40Cto+85°C
保存溫度			-55°Cto+125°C
頻率公差 @ 25°C			±15PPM
頻率穩定性(ref. to +25°C)			±20PPM

等效串聯電阻(ESR)			80Ω
并聯電容(C0)			2.0pF
負載電容 (CL)			6pF
激勵功率			10μWTyp 100μW
老化性(@25°C±3°C First year)			±2ppm
絕緣電阻@ 100Vdc ± 15V			500MOhms
通過無鉛認證			Yes
無鉛			Yes
MSL			N/A

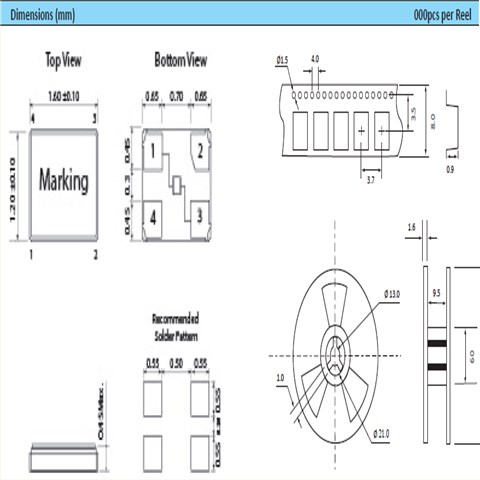

ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf尺寸圖

AEL原廠編碼	品牌	型號	工作溫度	頻率	頻率穩定度	頻率公差	負載
ELM12W-25.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	25 MHz	±20ppm	±15ppm	6 pF
ELM12W-26.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	26 MHz	±20ppm	±15ppm	6 pF
ELM12W-27.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	27 MHz	±20ppm	±15ppm	6 pF
ELM12W-28.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	28 MHz	±20ppm	±15ppm	6 pF
ELM12W-29.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	29 MHz	±20ppm	±15ppm	6 pF
ELM12W-30.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	30 MHz	±20ppm	±15ppm	6 pF
ELM12W-31.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	31 MHz	±20ppm	±15ppm	6 pF
ELM12W-32.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	32 MHz	±20ppm	±15ppm	6 pF
ELM12W-33.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	33 MHz	±20ppm	±15ppm	6 pF
ELM12W-34.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	34 MHz	±20ppm	±15ppm	6 pF
ELM12W-35.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	35 MHz	±20ppm	±15ppm	6 pF
ELM12W-36.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	36 MHz	±20ppm	±15ppm	6 pF
ELM12W-37.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	37 MHz	±20ppm	±15ppm	6 pF
ELM12W-38.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	38 MHz	±20ppm	±15ppm	6 pF
ELM12W-39.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	39 MHz	±20ppm	±15ppm	6 pF
ELM12W-40.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	40 MHz	±20ppm	±15ppm	6 pF
ELM12W-41.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	41 MHz	±20ppm	±15ppm	6 pF
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	-40°C ~ 85°C	24 MHz	±20ppm	±15ppm	6 pF

首頁 AEL晶振

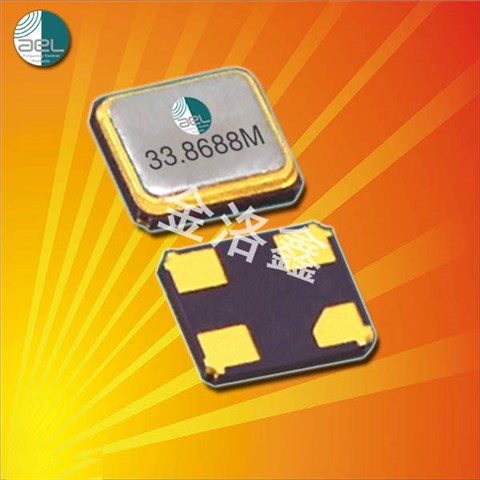

ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf
