FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振
FC3BQBBMM25.0-T3,FC3BQ晶振與3225無源晶振可構建"全鏈路覆蓋"的5G網絡頻率方案：在5G宏基站系統中,5G網絡基礎設施高頻率晶振(如50MHz型號)為基站的功率放大器提供高頻時序,保障射頻信號的穩定發射,提升基站覆蓋范圍(如實現3公里以上的有效覆蓋),FC3BQBBMM25.0-T3則為基站基帶處理單元(BBU)的高速接口模塊提供25.0MHz基準頻率,確保BBU與RRU間的光纖傳輸速率(如25Gbps)穩定,FC3BQ晶振適配5G微基站的信號處理單元,通過小型化封裝與高穩定性,在密集城區場景下保障微基站的信號補盲質量,3225晶振則應用于5G終端設備(如5G工業傳感器),為傳感器數據采集與上傳提供時序支撐.四者結合,覆蓋5G網絡"宏基站-微基站-核心網-終端"全鏈路的頻率需求,且均具備高可靠性與抗干擾性,在5G復雜通信環境下,為5G網絡的高速,低延遲,廣覆蓋提供核心時序保障.
FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振
| 原廠型號Original model ： | FC3BQBBMM25.0-T3 | 品牌 brand ： | FOX無源晶振 |
| 品牌 brand ： | FOX超小型晶振 | ESR（等效串聯電阻） Resistance) | 80 Ohms |
| 型號名稱Model name： | FC3BQ | 溫度 Operating Temperature | -40°C ~ 85°C |
| Type 系列： | MHz Crystal | 腳位 Termination： | 4 pad |
| 頻率frequency ： | 25 MHz | 封裝類型 Package Type： | 4-SMD |
| Frequency Stability頻率穩定度 | ±50ppm | 高度 Package Height： | 1.10mm |
| frequency tolerance頻率容差 | ±50ppm | 最小包裝數 MPQ ： | 3000 |
| Load capacitance負載電容 | 20pF | 包裝 Packaging： | Tape and Reel |

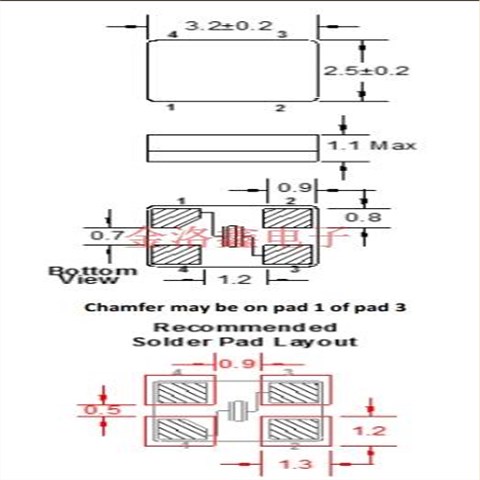

| Size / Dimension 尺寸 | 3.20mm x 2.50mm | 安裝方式 Mounting Style： | Surface Mount |
FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振
FC3BQBBMM25.0-T3,5G網絡基礎設施晶振,FC3BQ晶振,3225晶振
| FC4SDCBMF10.0-T1 | FOX無源晶振 | HC49SDLF石英晶振 | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF8.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF3.6864-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKFSREIHM0.032768-T3 | FOX無源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FC4STCBMF20.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 20 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FK135EIHM0.032768-T3 | FOX無源晶振 | K135 | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms |
| FC5BQCCMC12.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 12 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC5BQCCMM25.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMM12.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMM8.0-T1 | FOX無源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM7.3728-T1 | FOX無源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FKFSXEIHM0.032768-T3 | FOX無源晶振 | FSXLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 65 kOhms |
| FKFSREIBM0.032768-T3 | FOX無源晶振 | FSRLF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 6pF | 50 kOhms |
| FC8AQCCMC3.6864-T1 | FOX無源晶振 | FC8AQ | MHz Crystal | 3.6864 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC8AQCCMC4.0-T1 | FOX無源晶振 | FC8AQ | MHz Crystal | 4 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF11.0592-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF25.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF16.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF12.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMF24.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMM25.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4SDCBMF14.7456-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMM8.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF7.3728-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4SDCBMF6.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 6 MHz | ±50ppm | ±30ppm | 20pF | 120 Ohms |
| FC4SDCBMF4.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC3BQBBME12.0-T3 | FOX無源晶振 | FQ3225B | MHz Crystal | 12 MHz | ±50ppm | ±50ppm | 20pF | 120 Ohms |
| FC3BQBBMM25.0-T3 | FOX無源晶振 | FC3BQ | MHz Crystal | 25 MHz | ±50ppm | ±50ppm | 20pF | 80 Ohms |
| FKT38EIHD0.032768 | FOX無源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC4STCBMF10.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 10 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF25.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 20pF | 30 Ohms |
| FC4STCBMF16.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF12.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 12 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF11.0592 | FOX無源晶振 | HC49SLF | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4STCBMF8.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBMF7.3728 | FOX無源晶振 | HC49SLF | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 20pF | 80 Ohms |
| FC4STCBLF3.579545 | FOX無源晶振 | HC49SLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4STCBMF4.0 | FOX無源晶振 | HC49SLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC4STCBMF3.6864 | FOX無源晶振 | HC49SLF | MHz Crystal | 3.6864 MHz | ±50ppm | ±30ppm | 20pF | 200 Ohms |
| FKT26EIHD0.032768 | FOX無源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms |
| FKT38EIHQ0.032768 | FOX無源晶振 | NC38LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC5BQCCMC25.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 25 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC24.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 24 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC20.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 20 MHz | ±30ppm | ±30ppm | 20pF | 50 Ohms |
| FC5BQCCMC16.0-T1 | FOX無源晶振 | C5BQ | MHz Crystal | 16 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC8.0-T1 | FOX無源晶振 | C7BS | MHz Crystal | 8 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC7BSCCMM6.0-T1 | FOX無源晶振 | C7BS | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 80 Ohms |
| FC7BSCCMC7.3728-T1 | FOX無源晶振 | C7BS | MHz Crystal | 7.3728 MHz | ±30ppm | ±30ppm | 20pF | 110 Ohms |
| FC8AQCCMC6.0-T1 | FOX無源晶振 | FC8AQ | MHz Crystal | 6 MHz | ±30ppm | ±30ppm | 20pF | 150 Ohms |
| FC4SDCBMF12.288-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 12.288 MHz | ±50ppm | ±30ppm | 20pF | 60 Ohms |
| FC4SDCBMM16.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBMF18.432-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4SDCBLF3.579545-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 3.579545 MHz | ±50ppm | ±30ppm | 18pF | 200 Ohms |
| FC4SDCBMM4.0-T1 | FOX無源晶振 | HC49SDLF | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 20pF | 150 Ohms |
| FC2BSBBMM16.0-T3 | FOX無源晶振 | FX252B | MHz Crystal | 16 MHz | ±50ppm | ±50ppm | 20pF | 200 Ohms |
| FC4STCBMF18.432 | FOX無源晶振 | HC49SLF | MHz Crystal | 18.432 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FC4STCBMF14.7456 | FOX無源晶振 | HC49SLF | MHz Crystal | 14.7456 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms |
| FKT26EIHQ0.032768 | FOX無源晶振 | NC26LF | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 35 kOhms |
| FC3BACALI16.0-T3 | FOX無源晶振 | C3BA | MHz Crystal | 16 MHz | ±100ppm | ±30ppm | 18pF | 100 Ohms |
| FC3BACBDI16.0-T3 | FOX無源晶振 | C3BA | MHz Crystal | 16 MHz | ±50ppm | ±30ppm | 8pF | 100 Ohms |
