M1004S050 12.288000,麥特倫皮石英晶振,12.288MHz,M1004S050 12.288000晶振,麥特倫皮石英晶振,頻率12.288MHz,HC-49S插件晶振,負載15pf,工作溫度-40~85°C,抗沖擊晶振,環保晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振,物聯網晶振,數字電表晶振.

M1004S050 12.288000,麥特倫皮石英晶振,12.288MHz 特征

•電阻焊接(HC-49S)

•AT-Cut基本和泛音模式

•掃描石英可選

•堅固的設計,以支持惡劣的環境

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

M1004S050 12.288000,麥特倫皮石英晶振,12.288MHz參數

項目	數值	條件
頻率	12.288MHz
頻率公差	±30PPM	@ +25°C, see ordering information.
頻率穩定性	±50PPM	Over the operating temperature range

老化	±5ppm Max	First year @ +25ºC.
工作溫度	-40°Cto+85°C	See part numbering guide for options.
保存溫度	-55°Cto+125°C
并聯電容(C0)	7pF Max
負載電容 (CL)	15pF
激勵功率	500μW Max
絕緣電阻	500MΩ
串聯電阻ESR	80Ω	AT-Cut Fundamental.

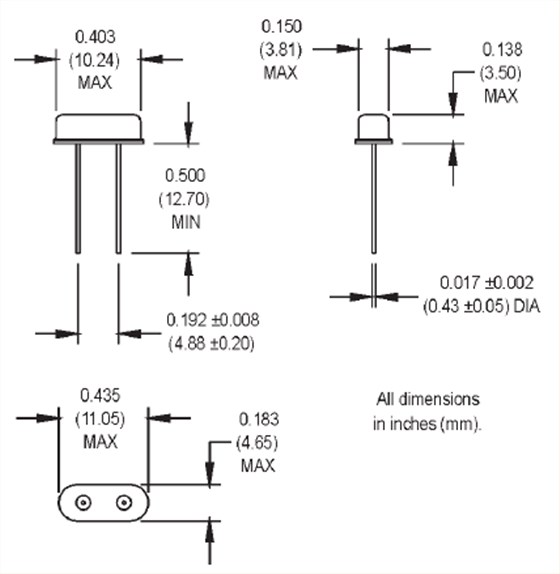

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz尺寸圖

原廠編碼	型號	頻率穩定度	頻率(MHz)	頻率容差	老化	包裝	工作溫度	負載
M1004S050 12.288000	ATS-49 series	±50 ppm	12.288	±30 ppm	±5 ppm	HC-49S	-40?C to +85?C	15 pF
M1004S051 15.000000	ATS-49 series	±50 ppm	15	±30 ppm	±5 ppm	HC-49S	-40?C to +85?C	15 pF
M1004S156 16.000000	ATS-49 series	±50 ppm	16	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 17.000000	ATS-49 series	±50 ppm	17	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 18.000000	ATS-49 series	±50 ppm	18	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 19.000000	ATS-49 series	±50 ppm	19	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 20.000000	ATS-49 series	±50 ppm	20	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 21.000000	ATS-49 series	±50 ppm	21	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 22.000000	ATS-49 series	±50 ppm	22	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 23.000000	ATS-49 series	±50 ppm	23	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 24.000000	ATS-49 series	±50 ppm	24	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 25.000000	ATS-49 series	±50 ppm	25	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 26.000000	ATS-49 series	±50 ppm	26	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 27.000000	ATS-49 series	±50 ppm	27	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 28.000000	ATS-49 series	±50 ppm	28	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 29.000000	ATS-49 series	±50 ppm	29	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 30.000000	ATS-49 series	±50 ppm	30	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 31.000000	ATS-49 series	±50 ppm	31	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 32.000000	ATS-49 series	±50 ppm	32	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 33.000000	ATS-49 series	±50 ppm	33	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 34.000000	ATS-49 series	±50 ppm	34	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 35.000000	ATS-49 series	±50 ppm	35	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 36.000000	ATS-49 series	±50 ppm	36	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF

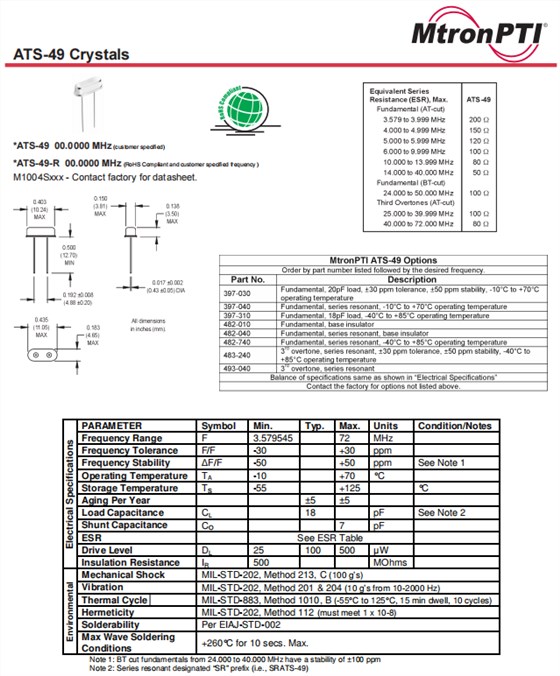

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz規格書與內部識別碼
