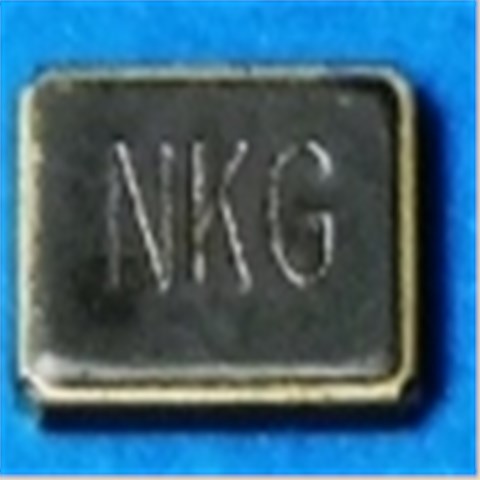

NKG小體積晶振,S3M40.0000F18M23-EXT,6G移動無線電晶振特點：

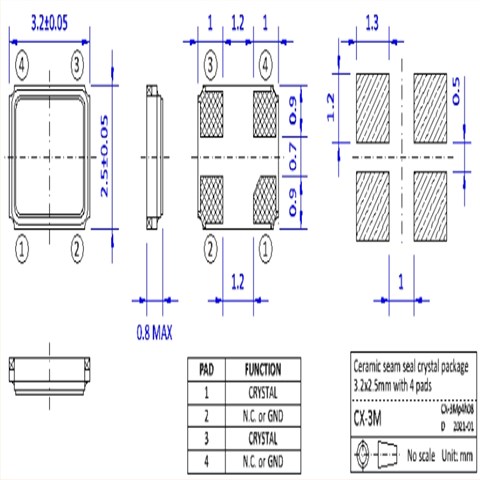

●微型包裝尺寸3.2 x 2.5x 0.7mm與4個墊
●優異的耐熱性和抗震性
●真空密封，可靠性高，老化率低
●符合AEC-Q200標準的汽車級產品可供選擇

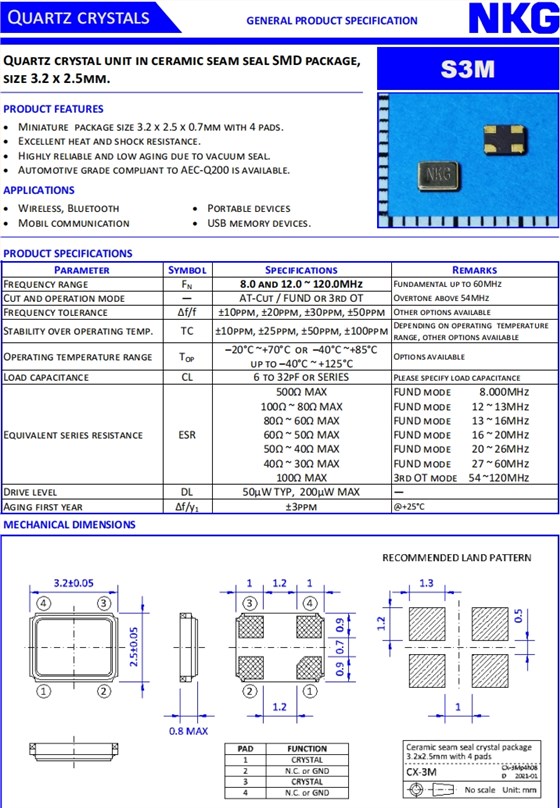

NKG小體積晶振,S3M40.0000F18M23-EXT,6G移動無線電晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
40MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±30ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
18pF
Please specify load capacitance
Equivalent series resistance
ESR
40Ω~30Ω MAX
FUND MODE 27~ 60MHz
Drive level
DL
50µW TYP, 200µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
