NKG晶振,S5M19.2000F18M23-EXT,5032mm晶振,6G移動應用晶振特點：
●小包裝尺寸5.0 x 3.2x 0.8mm與4個墊
●優異的耐熱性和抗震性
●高可靠的縫封封裝，低老化
●符合AEC-Q200標準的汽車級產品可供選擇

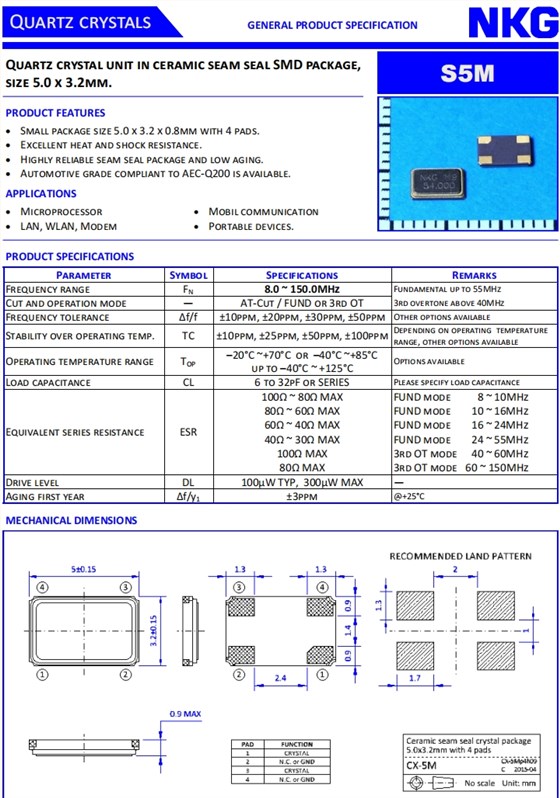

NKG晶振,S5M19.2000F18M23-EXT,5032mm晶振,6G移動應用晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
19.2MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±30ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
18pF
Please specify load capacitance
Equivalent series resistance
ESR
60Ω~40Ω MAX
FUND MODE 16~ 24MHz
Drive level
DL
100µW TYP, 300µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
