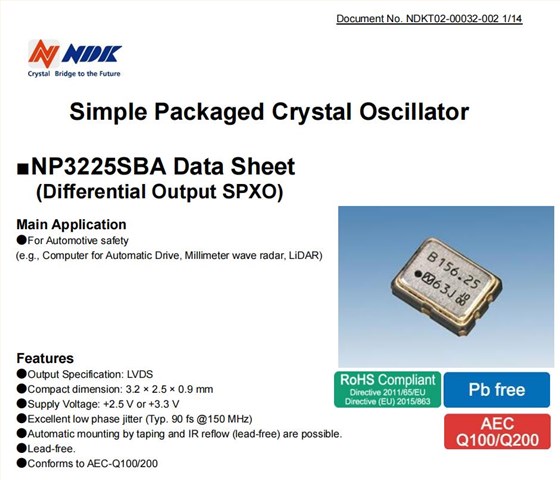

NSC5391B|NDK貼片晶振|汽車應用差分晶振|NP3225SBA有源晶振,日本進口晶振,NSC5391B石英晶體振蕩器,NDK貼片晶振,汽車應用差分晶振,NP3225SBA有源晶振,LVDS輸出差分晶振,頻率100MHz.電壓3.3V,3225mm石英晶體,工作溫度-40~105°C,耐高溫晶振,低相位抖動晶振,汽車安全裝置晶振,自動駕駛計算機晶振,毫米波雷達晶振,激光雷達晶振.
NSC5391B|NDK貼片晶振|汽車應用差分晶振|NP3225SBA有源晶振特點：
●輸出規格:LVDS
●緊湊尺寸:3.2 × 2.5 × 0.9 mm
NSC5391B|NDK貼片晶振|汽車應用差分晶振|NP3225SBA有源晶振 參數表
| 項目 | 符號 | 數值 | 注意 | ||
| 頻率 | fnom | 100MHz | |||
| 電壓 | VCC | +3.3 V | |||
| 電壓消耗運行 | ICC | 40mA max | at 25 °C | ||
| 輸出水平 | - | LVDS | |||
| 負載 | RL | 100Ω | Out-Complementary Out | ||
| 工作溫度 | Topr | -40°C to +105°C | |||
| 頻率公差 | Δf/fnom | ±100ppm | *1 | ||
| 差分輸出電壓 | VOD |
+0.247Vmin +0.454Vmax |
|
||
| VOS |
1.125 Vmin 1.375 Vmax |
||||
| 上升下降時間 | tr/tf | 0.4ns max | 20 % to 80 % waveform | ||
| 對稱 | SYM | 40%min -60%max | at 50 % Waveform | ||
| 啟動時間 | tsu | 10ms max | |||
| 相位抖動 | tpj | 1ps | *2 | ||
| 輸出波形 | - | Square wave | |||
| 儲存溫度 | T_stg | -55°Cto+125°C | |||

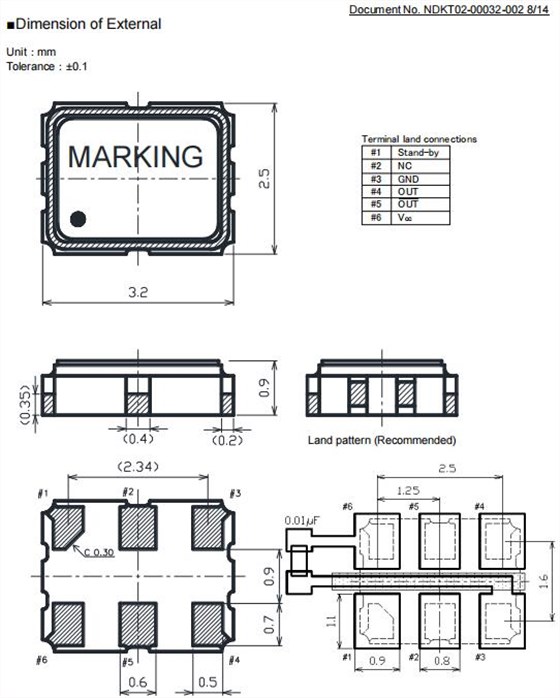

NSC5391B|NDK貼片晶振|汽車應用差分晶振|NP3225SBA有源晶振尺寸圖
| 型號 | 頻率[MHz] | 規格編號 | 尺寸(LxW)[mm] | 輸出方式 | 工作溫度[℃] | 保存溫度[℃] | 電源電壓[V] |
| NP3225SC | 100MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SC | 100MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 100MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 125MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 156.25MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SBB | 100MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 125MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBB | 156.25MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 100MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 156.25MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBD | 100MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBD | 156.25MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SCD | 100MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SCD | 156.25MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SBA | 100MHZ | NSC5391A | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5 ± 0.125 |
| NP3225SBA | 156.25MHZ | NSC5391A | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5 ± 0.125 |
| NP3225SBA | 100MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SBA | 125MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SBA | 156.25MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SCA | 100MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SCA | 125MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SCA | 156.25MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
