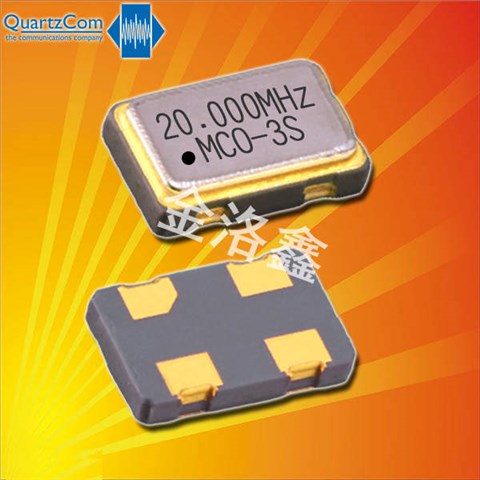

QuartzCom晶振,MCO-3S石英晶體,13.56MHz,6G基站晶振,QuartzCom晶振,MCO-3S石英晶體,貼片晶體振蕩器,進口有源晶振,尺寸5032mm,頻率13.56MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性30ppm,抗沖擊晶振,抗振動性晶振,低抖動晶振,6G基站晶振,無線通信晶振,小型電子產品晶振,網絡終端晶振,智能家居晶振.
QuartzCom晶振,MCO-3S石英晶體,13.56MHz,6G基站晶振特點：
●應用:電信，無線通信
●微型尺寸：5.0 x 3.2×1.3 mm
●頻率高達125MHz
●高抗沖擊和振動

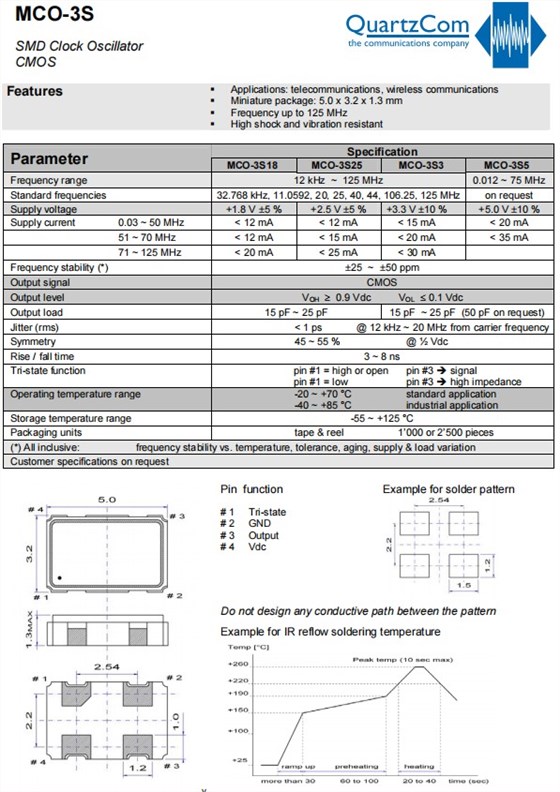

QuartzCom晶振,MCO-3S石英晶體,13.56MHz,6G基站晶振參數表
參數
Specification
MCO-3S18
MCO-3S25
MCO-3S3
頻率范圍
12KHz ~ 125 MHz
標準頻率
32.768 kHz, 11.0592, 20, 25, 40, 44, 106.25, 125 MHz
頻率穩定性
±25~±50 ppm
電源電壓
+1.8 V±5 %
+2.5 V±5 %
+3.3 V ±5 %
電源電流0.03-50MHz
< 12mA
< 12mA
< 15 mA
輸出信號
CMOS
輸出水平
VOH≥0.9 VdcVOL≤0.1 Vdc
輸出負載
15 pF~25 pF
抖動(均方根值)
< 1 ps @ 12 kHz ~ 20 MHz from carrier frequency
對稱性
45 ~ 55 %@ ½ Vdc
上升/下降時間
3~ 8 ns
三態函數
pin #1 = high or openpin #3-signal
pin #1 = lowpin #3 - high impedance
工作溫度范圍
- 20 ~ +70 °Ccommercial applicatio
-40 ~ +85 °Cindustrial application
儲存溫度范圍
-55 ~ +125 °C
包裝單位
tape & reel1’000 or 2’500 piece

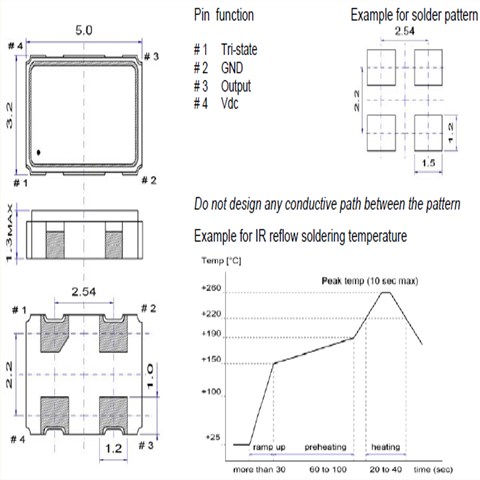

QuartzCom晶振,MCO-3S石英晶體,13.56MHz,6G基站晶振尺寸圖
