時鐘振蕩器C3390-7.372800專用于數字視頻應用

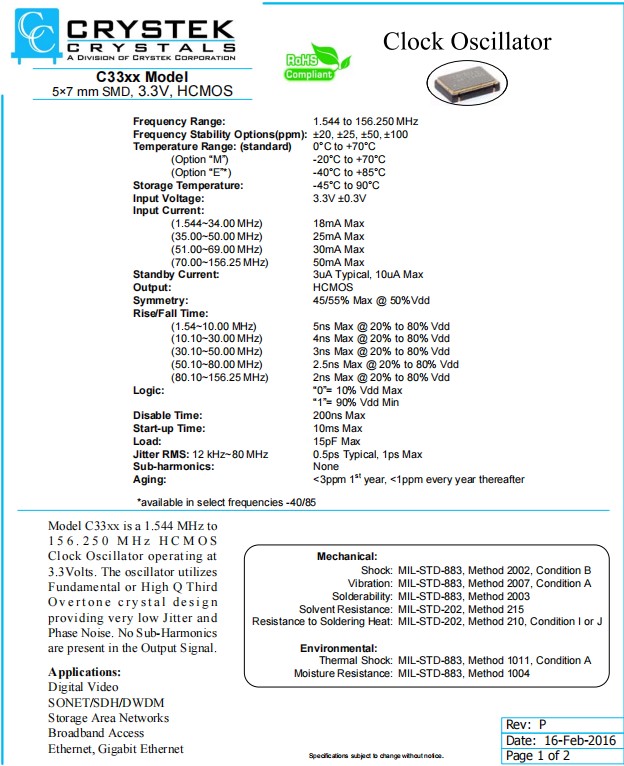

美國Crystek瑞斯克晶振C33xx系列，是一個小體積晶振尺寸7.0x5.0mm封裝，四腳貼片晶振，石英晶體振蕩器，有源晶振，石英晶振，頻率范圍1.544MHz到156.250MHz的HCMOS時鐘振蕩器，輸入電壓：3.3V±0.3V，頻率穩定性選項：±20，±25，±50，±100。該有源晶振振蕩器利用基本或高Q第三Q，提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。應用范圍：數字視頻，聲波儀/SDH/DWDM，存儲區域網絡，寬帶接入，以太網，千兆以太網。時鐘振蕩器C3390-7.372800專用于數字視頻應用
| 進口晶振 | 品牌 | 型號 | 類型 | 頻率 | 頻率穩定度 | 工作溫度 |
| CE3391-8.000 | Crystek晶振 | C33 | XO (Standard) | 8MHz | ±25ppm | -40°C ~ 85°C |
| C3391-4.096 | Crystek晶振 | C33 | XO (Standard) | 4.096MHz | ±25ppm | 0°C ~ 70°C |
| C3390-1.544 | Crystek晶振 | C33 | XO (Standard) | 1.544MHz | ±100ppm | 0°C ~ 70°C |
| C3390-1.843200 | Crystek晶振 | C33 | XO (Standard) | 1.8432MHz | ±100ppm | 0°C ~ 70°C |
| C3390-10.000 | Crystek晶振 | C33 | XO (Standard) | 10MHz | ±100ppm | 0°C ~ 70°C |
| C3390-12.000 | Crystek晶振 | C33 | XO (Standard) | 12MHz | ±100ppm | 0°C ~ 70°C |
| C3390-12.288 | Crystek晶振 | C33 | XO (Standard) | 12.288MHz | ±100ppm | 0°C ~ 70°C |
| C3390-12.352 | Crystek晶振 | C33 | XO (Standard) | 12.352MHz | ±100ppm | 0°C ~ 70°C |
| C3390-14.318180 | Crystek晶振 | C33 | XO (Standard) | 14.31818MHz | ±100ppm | 0°C ~ 70°C |
| C3390-15.360 | Crystek晶振 | C33 | XO (Standard) | 15.36MHz | ±100ppm | 0°C ~ 70°C |
| C3390-16.000 | Crystek晶振 | C33 | XO (Standard) | 16MHz | ±100ppm | 0°C ~ 70°C |
| C3390-16.384 | Crystek晶振 | C33 | XO (Standard) | 16.384MHz | ±100ppm | 0°C ~ 70°C |
| C3390-18.432 | Crystek晶振 | C33 | XO (Standard) | 18.432MHz | ±100ppm | 0°C ~ 70°C |
| C3390-19.440 | Crystek晶振 | C33 | XO (Standard) | 19.44MHz | ±100ppm | 0°C ~ 70°C |
| C3390-2.048 | Crystek晶振 | C33 | XO (Standard) | 2.048MHz | ±100ppm | 0°C ~ 70°C |
| C3390-20.000 | Crystek晶振 | C33 | XO (Standard) | 20MHz | ±100ppm | 0°C ~ 70°C |
| C3390-20.480 | Crystek晶振 | C33 | XO (Standard) | 20.48MHz | ±100ppm | 0°C ~ 70°C |
| C3390-24.000 | Crystek晶振 | C33 | XO (Standard) | 24MHz | ±100ppm | 0°C ~ 70°C |
| C3390-24.576 | Crystek晶振 | C33 | XO (Standard) | 24.576MHz | ±100ppm | 0°C ~ 70°C |
| C3390-24.704 | Crystek晶振 | C33 | XO (Standard) | 24.704MHz | ±100ppm | 0°C ~ 70°C |
| C3390-25.000 | Crystek晶振 | C33 | XO (Standard) | 25MHz | ±100ppm | 0°C ~ 70°C |
| C3390-3.686400 | Crystek晶振 | C33 | XO (Standard) | 3.6864MHz | ±100ppm | 0°C ~ 70°C |
| C3390-30.000 | Crystek晶振 | C33 | XO (Standard) | 30MHz | ±100ppm | 0°C ~ 70°C |
| C3390-32.000 | Crystek晶振 | C33 | XO (Standard) | 32MHz | ±100ppm | 0°C ~ 70°C |
| C3390-32.768 | Crystek晶振 | C33 | XO (Standard) | 32.768MHz | ±100ppm | 0°C ~ 70°C |
| C3390-33.000 | Crystek晶振 | C33 | XO (Standard) | 33MHz | ±100ppm | 0°C ~ 70°C |
| C3390-33.333 | Crystek晶振 | C33 | XO (Standard) | 33.333MHz | ±100ppm | 0°C ~ 70°C |
| C3390-34.368 | Crystek晶振 | C33 | XO (Standard) | 34.368MHz | ±100ppm | 0°C ~ 70°C |
| C3390-35.000 | Crystek晶振 | C33 | XO (Standard) | 35MHz | ±100ppm | 0°C ~ 70°C |
| C3390-35.328 | Crystek晶振 | C33 | XO (Standard) | 35.328MHz | ±100ppm | 0°C ~ 70°C |
| C3390-4.000 | Crystek晶振 | C33 | XO (Standard) | 4MHz | ±100ppm | 0°C ~ 70°C |
| C3390-4.096 | Crystek晶振 | C33 | XO (Standard) | 4.096MHz | ±100ppm | 0°C ~ 70°C |
| C3390-40.000 | Crystek晶振 | C33 | XO (Standard) | 40MHz | ±100ppm | 0°C ~ 70°C |
| C3390-44.736 | Crystek晶振 | C33 | XO (Standard) | 44.736MHz | ±100ppm | 0°C ~ 70°C |
| C3390-45.000 | Crystek晶振 | C33 | XO (Standard) | 45MHz | ±100ppm | 0°C ~ 70°C |
| C3390-49.152 | Crystek晶振 | C33 | XO (Standard) | 49.152MHz | ±100ppm | 0°C ~ 70°C |
| C3390-50.000 | Crystek晶振 | C33 | XO (Standard) | 50MHz | ±100ppm | 0°C ~ 70°C |
| C3390-51.840 | 貼片晶振 | C33 | XO (Standard) | 51.84MHz | ±100ppm | 0°C ~ 70°C |
| C3390-6.176 | Crystek晶振 | C33 | XO (Standard) | 6.176MHz | ±100ppm | 0°C ~ 70°C |
| C3390-7.372800 | Crystek晶振 | C33 | XO (Standard) | 7.3728MHz | ±100ppm | 0°C ~ 70°C |
| C3390-8.000 | Crystek晶振 | C33 | XO (Standard) | 8MHz | ±100ppm | 0°C ~ 70°C |
| C3390-8.064 | Crystek晶振 | C33 | XO (Standard) | 8.064MHz | ±100ppm | 0°C ~ 70°C |
| C3390-8.192 | Crystek晶振 | C33 | XO (Standard) | 8.192MHz | ±100ppm | 0°C ~ 70°C |
| C3392-1.544 | Crystek晶振 | C33 | XO (Standard) | 1.544MHz | ±50ppm | 0°C ~ 70°C |
| C3392-1.843200 | Crystek晶振 | C33 | XO (Standard) | 1.8432MHz | ±50ppm | 0°C ~ 70°C |
| C3392-10.000 | Crystek晶振 | C33 | XO (Standard) | 10MHz | ±50ppm | 0°C ~ 70°C |
| C3392-12.000 | Crystek晶振 | C33 | XO (Standard) | 12MHz | ±50ppm | 0°C ~ 70°C |
| C3392-12.288 | Crystek晶振 | C33 | XO (Standard) | 12.288MHz | ±50ppm | 0°C ~ 70°C |
| C3392-12.352 | Crystek晶振 | C33 | XO (Standard) | 12.352MHz | ±50ppm | 0°C ~ 70°C |
| C3392-14.318180 | Crystek晶振 | C33 | XO (Standard) | 14.31818MHz | ±50ppm | 0°C ~ 70°C |
