耐高溫晶振SG-210SEBA汽車音響控制器專用晶振X1G004611A04300
晶振作為數字電路之魂，隨著電子信息產業不斷發展和智能化，晶振在汽車領域的應用最為巨量和廣泛。

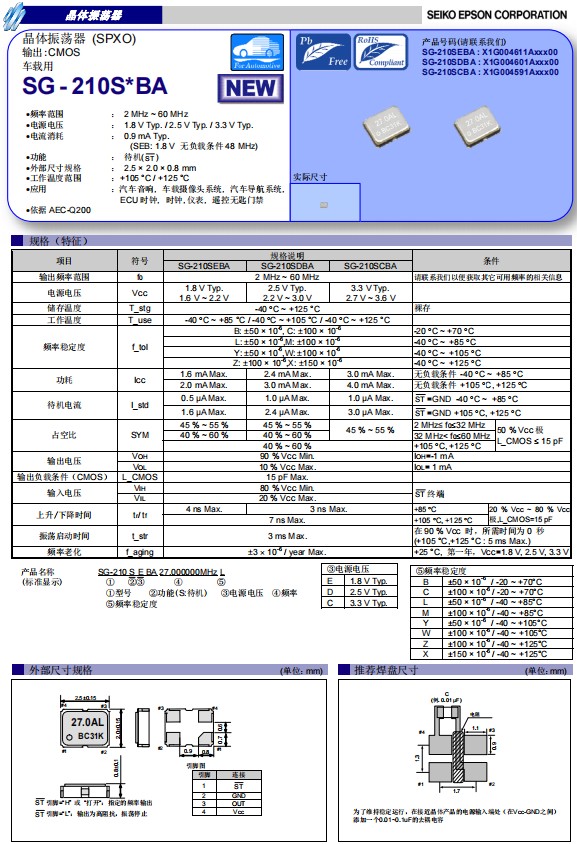

愛普生晶振SG-210SEBA是一款CMOS輸出石英晶體振蕩器(SPXO)，小體積晶振尺寸2.5x2.0mm四腳貼片晶振，有源晶振，電源電壓1.8V至3.3V，頻率范圍2MHz至60MHz，寬工作溫度可達到-40℃至125℃，該產品具有超小型，輕薄型，低抖動，低功耗，耐高溫，耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。非常適用于汽車電子應用，汽車音響控制器，車載攝像頭系統，汽車導航系統，時鐘，儀表等。是汽車電子應用中的理想選擇.
耐高溫晶振SG-210SEBA汽車音響控制器專用晶振X1G004611A04300
 產品編碼
|
 型號
|
 頻率
|
愛普生晶振 |
 輸出波
|
 電源電壓
|
 工作溫度
|
| X1G004611A00100 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A00300 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A00400 | SG-210SEBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A00500 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01200 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01300 | SG-210SEBA | 33.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A01400 | SG-210SEBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A01600 | SG-210SEBA | 14.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01700 | SG-210SEBA | 37.125000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01900 | SG-210SEBA | 13.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A02000 | SG-210SEBA | 10.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02100 | SG-210SEBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A02200 | SG-210SEBA | 16.660000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02400 | SG-210SEBA | 14.745600MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02500 | SG-210SEBA | 16.640000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02600 | SG-210SEBA | 24.576000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02700 | SG-210SEBA | 12.288000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A02800 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03000 | SG-210SEBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A03100 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A03300 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A03400 | SG-210SEBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03500 | SG-210SEBA | 41.250000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03600 | SG-210SEBA | 16.640000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03700 | SG-210SEBA | 16.510000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03800 | SG-210SEBA | 9.600000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04100 | SG-210SEBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04200 | SG-210SEBA | 33.300000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04300 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A04400 | SG-210SEBA | 33.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04500 | SG-210SEBA | 49.500000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
汽車的應用場景包括導航、遠程呼叫、緊急救援、防盜跟蹤、道路救援、電話、資訊娛樂、下載應用，自動駕駛等等，為了實現人與汽車系統自由的交互，并提供實時的信息互動、支付、交通、天氣等功能，汽車對車規級晶振的依賴只會越來越強。
汽車電子要求元件應當具有更寬廣的工作溫度范圍和應對惡劣工作環境的特性，愛普生晶振提供了許多契合汽車應用特殊要求的不同種類的石英晶體和實時時鐘模塊。這些產品通過了AEC-Q200汽車電子認證的嚴格測試要求，并成功應用在下列領域：胎壓監測(TPMS)，引擎控制，音響和多媒體系統，汽車GPS導航，汽車控制面板和無鍵盤的控制系統。SG-210SEBA有源晶振便是最適合使用在汽車電子產品上的石英晶體振蕩器。
