當前位置：首頁 » 貼片晶振 » DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

prevnext

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

頻率：1.8432MHz

尺寸：2.50mm x 2.00mm

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振,核心輸出頻率固定為1.8432MHz,屬于低頻時鐘信號范疇,專為對時鐘精度要求高且需簡化電路設計的場景打造.作為有源晶振,其內置完整振蕩驅動電路,無需外部額外提供激勵信號,可直接輸出穩定時鐘,支持單端輸出接口(如LVCMOS),適配1.8V/2.5V/3.3V多規格供電系統,能為各類電子設備提供低抖動,高穩定的基準時鐘,保障設備時序邏輯的精準同步.

訂購熱線：0755-27837162

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

DSC1001DI1-001.8432是美國微芯(Microchip)推出的高精準有源晶振,采用行業標準的2520mm(2.5mm×2.0mm)微型表面貼裝封裝,封裝高度僅0.6mm左右,相較于傳統3225封裝晶振,占位面積減少約37.5%,在PCB板布局中可節省大量空間,尤其適配智能可穿戴設備晶振(如智能手表,手環),小型傳感器模塊,便攜式醫療設備等對體積要求嚴苛的產品.憑借1.8432MHz的低頻特性,2520mm小封裝及穩定性能,DSC1001DI1-001.8432廣泛應用于多領域.在消費電子領域,可作為藍牙模塊,Wi-Fi模塊的時鐘源,保障無線通信的低延遲與信號穩定性,在工業自動化領域,適配小型PLC(可編程邏輯控制器),數據采集終端,為設備的指令傳輸與數據處理提供精準時序支持,在醫療電子領域,適用于小型血氧儀,血糖儀等便攜式醫療設備,滿足設備對低功耗(典型工作電流低于5mA)與長期穩定運行的需求,此外,還可用于智能家居網關,安防監控傳感器等場景,助力設備實現高效,可靠的功能運轉.

JLX-2

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

原廠型號 Originalmodel：	DSC1001DI1-001.8432	品牌brand：	Microchip
Manufacturer品牌	Microchip	OperatingTemperature溫度	-40℃ ~ 85℃
Series型號	DSC1001	Current-Supply(Max)	6.3mA
Type類型	MEMS	PackageHeight高度	0.9mm
Frequency頻率	1.8432MHz	Termination 腳位	4-pad
輸出方式 Output：	CMOS	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	1.8 V ~ 3.3 V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±50ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	2520晶體振蕩器	最小包裝數MPQ：	3000

JLX-3

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

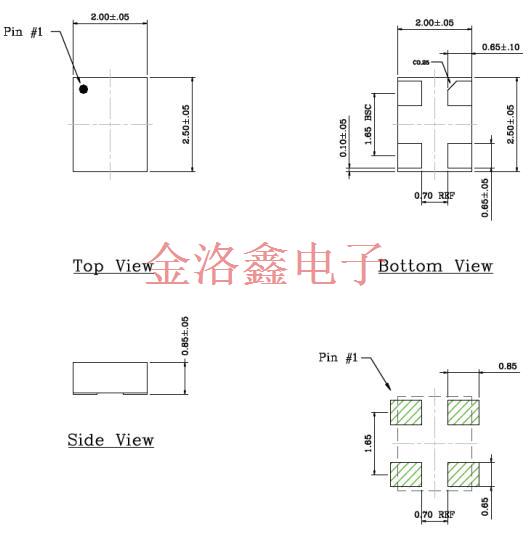

DSC1001-3

DSC1001DI1-001.8432,2520mm晶振,Microchip有源晶振

DSC1123CE1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
DSC1103DI2-312.5000	Microchip	DSC1103	MEMS	312.5MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DI2-050.0000	Microchip	DSC1123	MEMS	50MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI2-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123BL2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI5-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI5-300.0000	Microchip	DSC1103	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123DL5-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123NL5-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V
MX574BBD322M265	Microchip	MX57	XO (Standard)	322.265625MHz	HCSL	2.375 V ~ 3.63 V
DSC1001CI2-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1123CI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1123CI1-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AE2-300.0000	Microchip	DSC1123	MEMS	300MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V
DSC1122CE1-125.0000	Microchip	DSC1122	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V
DSC1123AE2-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC1103CI1-075.0000	Microchip	DSC1103	MEMS	75MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI2-150.0000	Microchip	DSC1123	MEMS	150MHz	LVDS	2.25 V ~ 3.6 V
DSC1123AI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V
DSC557-0344SI1	Microchip	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC6003CI1A-033.0000	Microchip	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V
DSC6111CI1A-008.0000	Microchip	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V
DSC6011JI1A-024.0000	Microchip	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-032K800	Microchip	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-307K000	Microchip	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-004.0000	Microchip	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V
DSC6001CI2A-032.0000	Microchip	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-250K000	Microchip	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V
DSC6083CI2A-002K000	Microchip	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V
DSC6101JI2A-024.0000	Microchip	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CC1-047.3333	Microchip	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1030BC1-008.0000	Microchip	DSC1030	MEMS	8MHz	CMOS	3V
DSC1001BC1-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BC1-026.6000	Microchip	DSC1033	MEMS	26MHz	CMOS	3.3V
DSC1001DI1-001.8432	Microchip	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-048.0000	Microchip	DSC1033	MEMS	48MHz	CMOS	3.3V
DSC1033CI1-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1033DI1-012.0000	Microchip	DSC1033	MEMS	12MHz	CMOS	3.3V
DSC1033DI1-036.0000	Microchip	DSC1033	MEMS	36MHz	CMOS	3.3V
DSC1001CI1-027.0000	Microchip	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V
DSC1033CI1-050.0000	Microchip	DSC1033	MEMS	50MHz	CMOS	3.3V
DSC6001CI1A-011.0592	Microchip	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V
DSC1001CI2-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V
DSC1033BE2-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V
DSC1001DI2-038.4000	Microchip	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V
DSC1001CI5-033.3333	Microchip	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V
DSC1101DM2-012.0000	Microchip	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V
DSC1001DE5-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V
DSC1101AI2-040.0000	Microchip	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-080.0000	Microchip	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V
DSC1101AI2-064.0000	Microchip	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V
DSC1124CI5-100.0000	Microchip	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V
DSC1121CM2-040.0000	Microchip	DSC1121	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V
DSC1101DL5-020.0000	Microchip	DSC1101	MEMS	20MHz	CMOS	2.25 V ~ 3.6 V
DSC1101BI5-133.0000	Microchip	DSC1101	MEMS	133MHz	CMOS	2.25 V ~ 3.6 V
DSC1101CL5-100.0000	Microchip	DSC1101	MEMS	100MHz	CMOS	2.25 V ~ 3.6 V
