Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振

頻率：40MHZ

尺寸：3.2mm x 2.5mm

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振,Jauch晶振,JO33H有源晶振,O 40.0-JO33H-E-3.3-1-T2晶振,石英晶體振蕩器,3225mm晶振,進口貼片晶振,頻率40MHz,工作溫度-40~105°C,電壓3.3V,高穩定性晶振,耐高溫晶振,6G無線網絡晶振,WIFI應用晶振,藍牙音響晶振,通訊設備晶振.



訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

Jau-1

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振,Jauch晶振,JO33H有源晶振,O 40.0-JO33H-E-3.3-1-T2晶振,石英晶體振蕩器,3225mm晶振,進口貼片晶振,頻率40MHz,工作溫度-40~105°C,電壓3.3V,高穩定性晶振,耐高溫晶振,6G無線網絡晶振,WIFI應用晶振,藍牙音響晶振,通訊設備晶振.

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振特點：

-帶停止功能的高穩定性振蕩器3.2x 2.5mm

- LVCMOS / HCMOS兼容輸出

-穩定性適合無線應用（藍牙、WIFI等）

-可變電源電壓1.8伏~ 3.3伏

-低相位抖動，無PLL

-接縫密封陶瓷/金屬封裝

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

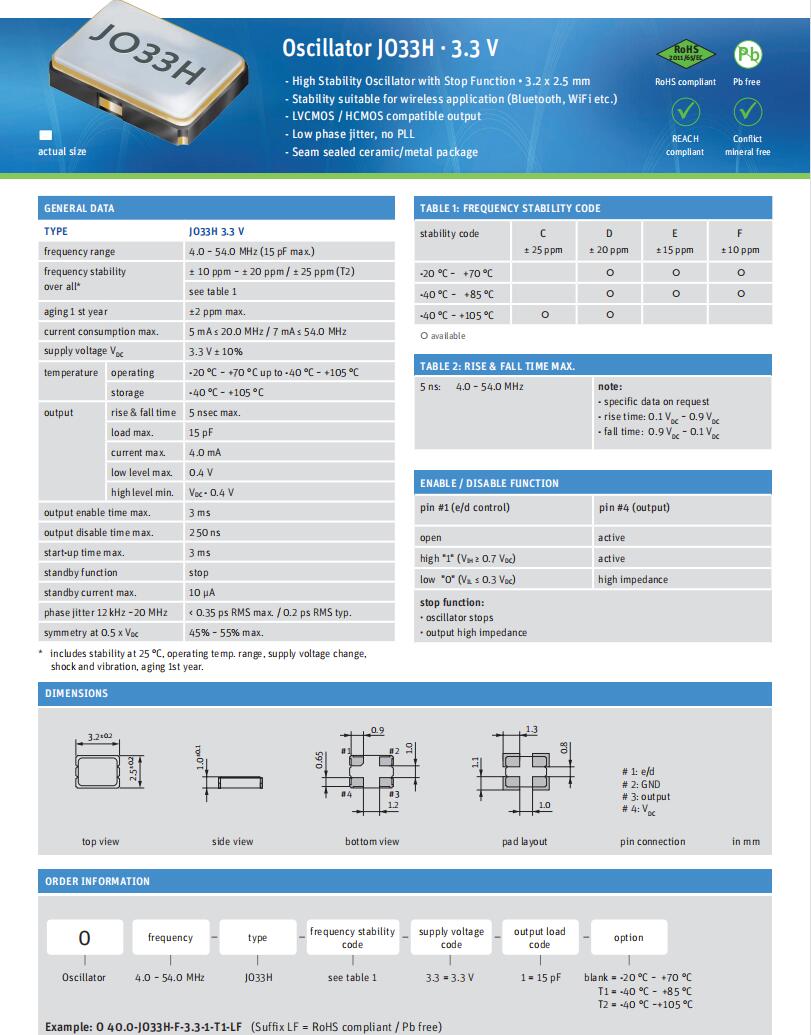

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振參數表

 型號 JO33H
 頻率 40MHz
頻率穩定性 ± 15 ppm
電流消耗 5 mA ≤ 20.0 MHz / 7 mA ≤ 54.0 MHz
電源電壓 3.3V
工作溫度 -40°C ~ +105 °C
儲存溫度 -40°C ~ +105°C
上升下降時間 5 ns max
輸出負載 15 pF
最大啟動時間 3 ms
最大待機電流 10 µA
相位抖動:12 kHz ~20 MHz
 < 0.35 ps RMS max
0.5 x VDC時的對稱性 45% ~ 55% max.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

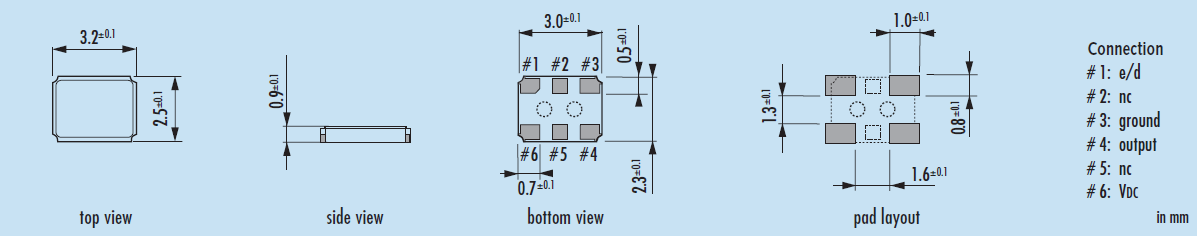

Jauch晶振,O 40.0-JO33H-E-3.3-1-T2,高穩定性晶振,6G無線網絡晶振尺寸圖

jo32h-3.3V-3225 OSC

Jauch晶振原廠編碼 制造商 型號 頻率 頻率容差 負載電容 Operating Mode 工作溫度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-8-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-9-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 32.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C

JO33H


JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫電子有限公司

聯系人：茹紅青

手機：13510569637

電話：0755-27837162

QQ號：657116624

微信公眾號：CITIZENCRYSTAL

搜狐公眾號：晶振石英晶振NDK晶振

郵箱：jinluodz@163.com

地址：深圳市寶安區41區甲岸路19號

網址：http://m.jftz888.com/

相關的產品 / Related Products

7AD00800A1C,KDS日產無源晶振,DSX321G陶瓷封裝晶振
7AD00800A1C,KDS日產無源晶振,DSX321G陶瓷封裝晶振

7AD00800A1C,KDS日產無源晶振,DSX321G陶瓷封裝晶振,憑借陶瓷材質優異的氣密性與絕緣性,實現了極高的頻率穩定性.其頻率8MHz,基準溫度下頻率公差低至±20ppm,在-40℃至85℃的寬溫環境中頻率漂移可控制,能為電子系統提供精準穩定的時鐘基準,廣泛適配對時序精度要求嚴苛的各類電路.


ECS-196.6-12-33Q-JEN-TR,ECX-33Q貼片晶振,ECS伊西斯晶振
ECS-196.6-12-33Q-JEN-TR,ECX-33Q貼片晶振,ECS伊西斯晶振

ECS-196.6-12-33Q-JEN-TR,ECX-33Q貼片晶振,ECS伊西斯晶振,具備優異的抗沖擊與抗電磁干擾能力,適配不同主控芯片的電路設計需求,廣泛應用于汽車電子,工業傳感器等復雜環境,±20ppm精準頻率公差可滿足USB通信,單片機系統的時鐘同步要求.從-40℃低溫啟動到85℃高溫運行,兩款晶振始終保持穩定振蕩,配合ECS完善的品質驗證體系,為產品全生命周期提供可靠時序保障.


Q38,40-JXS21-10-10/15-T1-FU-WA-LF,表面貼裝石英晶振,Jauch貼片晶振
Q38,40-JXS21-10-10/15-T1-FU-WA-LF,表面貼裝石英晶振,Jauch貼片晶振

Q38,40-JXS21-10-10/15-T1-FU-WA-LF歐美進口晶振,表面貼裝石英晶振,Jauch貼片晶振,以高品質石英晶體為核心,憑借先進的光刻工藝與嚴格的生產管控,實現了卓越的性能表現.該產品頻率為38.4MHz,頻率穩定性±10ppm,工作溫度范圍覆蓋主流工業及消費電子應用場景,負載電容10pF的參數配置可直接適配多數常規電路設計.


JLX-PD

金洛鑫產品系列

PRODUCT LINE

石英晶振
QuartzCrystal

貼片晶振
SMDcrystal

諧振器濾波器
Resonator

溫補晶振
TCXOcrystal

32.768K
32768Kcrystal

霧化片
AtomizationPiece

智能穿戴

車載安防

通訊網絡

智能玩具

金洛鑫聯系方式
咨詢熱線：0755-27837162

手機：13510569637

QQ：QQ

郵箱：jinluodz@163.com

地址：廣東省深圳市寶安區寶安41區甲岸路

南开区| 鄯善县| 铅山县| 江山市| 贺州市| 林西县| 白银市| 布拖县| 伊春市| 镇平县| 澄江县| 玉林市| 仁寿县| 儋州市| 延吉市| 宜兰县| 靖远县| 杨浦区| 呼伦贝尔市| 宜城市| 太和县| 阳江市| 拉萨市| 门源| 洛阳市| 泸溪县| 安多县| 双牌县| 昂仁县| 邵武市| 梅河口市| 巴彦淖尔市| 寿宁县| 昌乐县| 岳西县| 沽源县| 大关县| 永城市| 镇安县| 安阳县| 青川县|
