Jauch晶振,O 48.0-JO22H-F-2.5-1-T1,2520mm晶振,6G無線應用晶振

頻率：48MHZ

尺寸：2.5mm x 2.0mm

Jauch晶振,O 48.0-JO22H-F-2.5-1-T1,2520mm晶振,6G無線應用晶振,Jauch晶振,JO22H石英晶體振蕩器,O 48.0-JO22H-F-2.5-1-T1晶振,超小型晶振,進口有源晶振,2520mm晶振,頻率48MHz,工作溫度-40~85°C,電壓2.5V,高可靠性晶振,低相位抖動晶振,6G無線應用晶振,藍牙模塊晶振,室內路由器晶振,網絡終端晶振.



訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

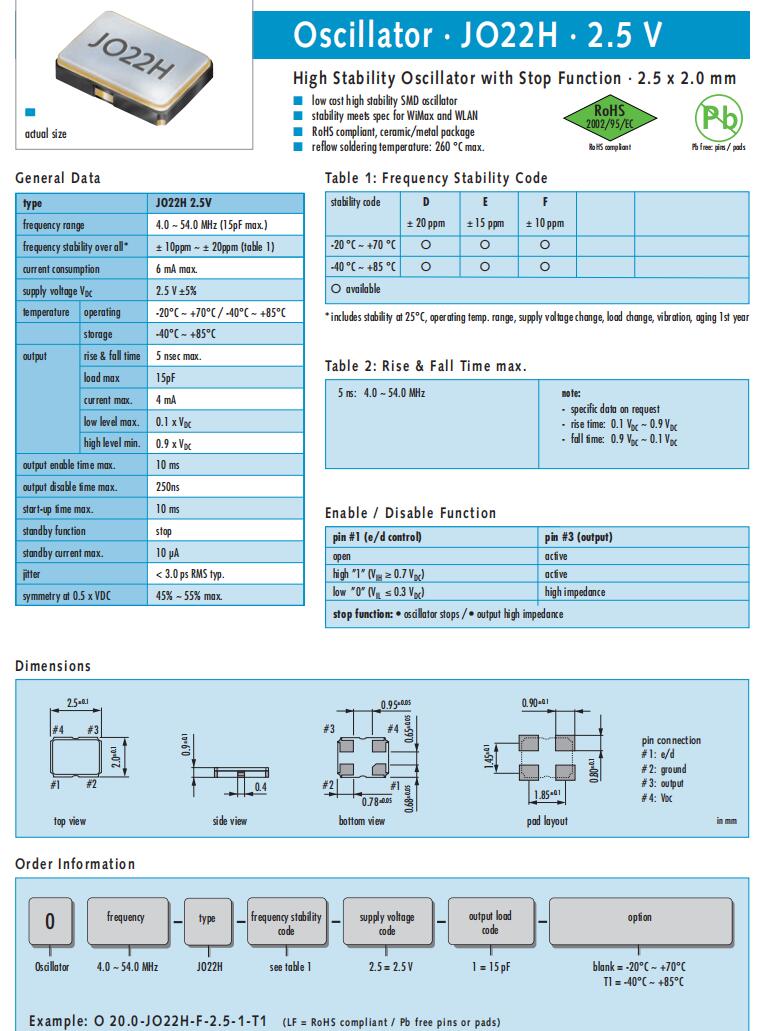

Jau-1

Jauch晶振,O 48.0-JO22H-F-2.5-1-T1,2520mm晶振,6G無線應用晶振,Jauch晶振,JO22H石英晶體振蕩器,O 48.0-JO22H-F-2.5-1-T1晶振,超小型晶振,進口有源晶振,2520mm晶振,頻率48MHz,工作溫度-40~85°C,電壓2.5V,高可靠性晶振,低相位抖動晶振,6G無線應用晶振,藍牙模塊晶振,室內路由器晶振,網絡終端晶振.

Jauch晶振,O 48.0-JO22H-F-2.5-1-T1,2520mm晶振,6G無線應用晶振特點：

-帶停止功能的高穩定性振蕩器2.5x 2.0mm

- LVCMOS / HCMOS兼容輸出

-穩定性適合無線應用（藍牙、WIFI等）

-可變電源電壓1.8伏~ 3.3伏

-低相位抖動，無PLL

-接縫密封陶瓷/金屬封裝

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

Jauch晶振,O 48.0-JO22H-F-2.5-1-T1,2520mm晶振,6G無線應用晶振參數表

 型號 JO22H
 頻率 48MHz
頻率穩定性 ± 10 ppm
電流消耗 6mA
電源電壓 2.5V
工作溫度 -40°C ~ +85 °C
儲存溫度 -40°C ~ +85°C
上升下降時間 5 ns max
輸出負載 15 pF
最大啟動時間 3 ms
最大待機電流 10 µA
相位抖動:12 kHz ~20 MHz
 < 3.0 ps RMS typ
0.5 x VDC時的對稱性 45% ~ 55% max.

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

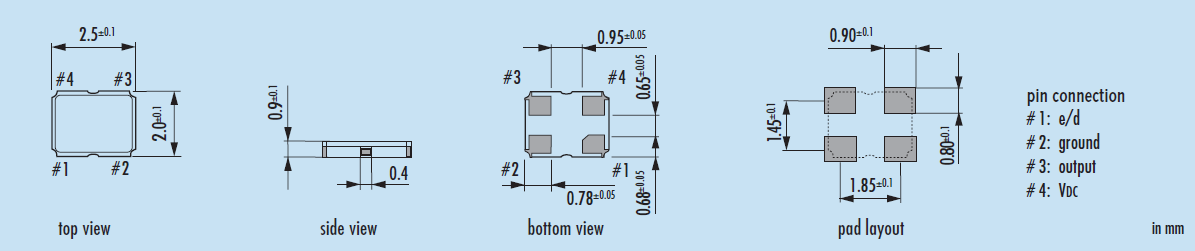

Jauch晶振,O 48.0-JO22H-F-2.5-1-T1,2520mm晶振,6G無線應用晶振尺寸圖

jo22h-2.5V-2520 OSC

Jauch晶振原廠編碼 制造商 型號 頻率 頻率容差 負載電容 Operating Mode 工作溫度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-12-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-8-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-10-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-12-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-8-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 16.0-JXS32-9-10/10-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-10-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 38.4-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 32.0-JXS32-9-10/10-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 19.2-JXS32-9-10/15-T1-WA-LF Jauch晶振 JXS32-WA 19.2MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 20MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 24MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-10-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-10-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-12-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 16.0-JXS32-8-10/15-T1-WA-LF Jauch晶振 JXS32-WA 16MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 38.4MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-12-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-8-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 32.0-JXS32-9-10/15-T1-FU-WA-LF Jauch晶振 JXS32-WA 32MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C

JO22H


JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫電子有限公司

聯系人：茹紅青

手機：13510569637

電話：0755-27837162

QQ號：657116624

微信公眾號：CITIZENCRYSTAL

搜狐公眾號：晶振石英晶振NDK晶振

郵箱：jinluodz@163.com

地址：深圳市寶安區41區甲岸路19號

網址：http://m.jftz888.com/

相關的產品 / Related Products

SQ8130J6-32.000MHz,SX-22石英貼片晶振,SUNNY韓國進口晶振
SQ8130J6-32.000MHz,SX-22石英貼片晶振,SUNNY韓國進口晶振

SQ8130J6-32.000MHz,SX-22石英貼片晶振,SUNNY韓國進口晶振,憑借專屬石英晶片切割工藝與精密封裝技術,實現32.000MHz精準標稱頻率輸出.在-40℃~85℃標準工作溫度范圍內性能穩定,有效保障電子設備時序同步精度.采用2520微型貼片晶振封裝,重量輕,體積緊湊,適配超薄智能設備與微型通信模組,支持高溫回流焊與自動高速貼裝,符合RoHS無鉛環保標準,是消費電子領域的高性價比頻率元件之選.



Q38,40-JXS21-10-10/15-T1-FU-WA-LF,表面貼裝石英晶振,Jauch貼片晶振
Q38,40-JXS21-10-10/15-T1-FU-WA-LF,表面貼裝石英晶振,Jauch貼片晶振

Q38,40-JXS21-10-10/15-T1-FU-WA-LF歐美進口晶振,表面貼裝石英晶振,Jauch貼片晶振,以高品質石英晶體為核心,憑借先進的光刻工藝與嚴格的生產管控,實現了卓越的性能表現.該產品頻率為38.4MHz,頻率穩定性±10ppm,工作溫度范圍覆蓋主流工業及消費電子應用場景,負載電容10pF的參數配置可直接適配多數常規電路設計.


Q0.032768-SMQ32SL-12.5-10-T1,智能中控設備晶振,Jauch晶體諧振器
Q0.032768-SMQ32SL-12.5-10-T1,智能中控設備晶振,Jauch晶體諧振器
Q0.032768-SMQ32SL-12.5-10-T1,智能中控設備晶振,Jauch諧振器,以32.768KHz標準頻率完美匹配智能中控的低功耗運行需求.緊湊的封裝設計適配中控設備內部密集電路布局,可輕松融入智能面板,中央控制器,物聯網中控模塊等產品,能承受家庭,辦公場景的溫度波動與電磁干擾,持續穩定輸出時鐘信號,確保燈光,家電,安防等系統的聯動響應及時性與指令執行準確性.

JLX-PD

金洛鑫產品系列

PRODUCT LINE

石英晶振
QuartzCrystal

貼片晶振
SMDcrystal

諧振器濾波器
Resonator

溫補晶振
TCXOcrystal

32.768K
32768Kcrystal

霧化片
AtomizationPiece

智能穿戴

車載安防

通訊網絡

智能玩具

金洛鑫聯系方式
咨詢熱線：0755-27837162

手機：13510569637

QQ：QQ

郵箱：jinluodz@163.com

地址：廣東省深圳市寶安區寶安41區甲岸路

进贤县| 博客| 蓬安县| 瑞金市| 来凤县| 多伦县| 贵阳市| 宝丰县| 罗田县| 仁布县| 屏边| 吴江市| 八宿县| 曲靖市| 新疆| 嵩明县| 阿瓦提县| 馆陶县| 永年县| 瑞金市| 墨竹工卡县| 甘泉县| 丰城市| 泾源县| 宁化县| 正镶白旗| 隆子县| 宕昌县| 吉安市| 双桥区| 德清县| 瑞丽市| 勃利县| 涟源市| 陆良县| 襄樊市| 南充市| 商城县| 无为县| 南汇区| 台湾省|
