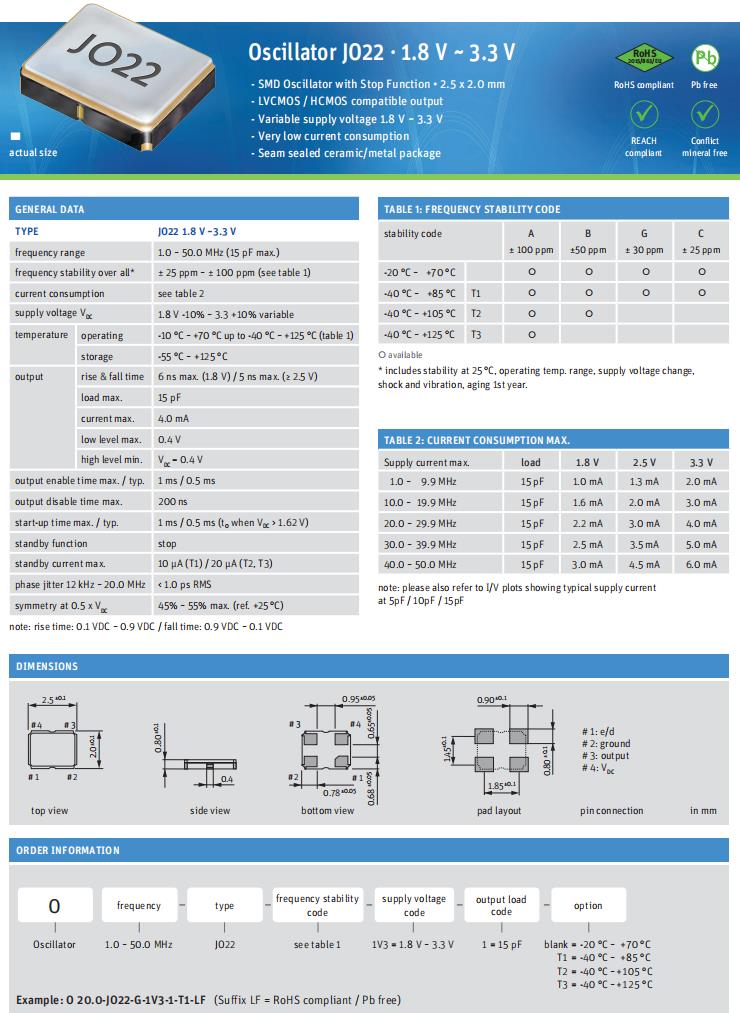

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振蕩器,6G無線網絡晶振

頻率：40MHz

尺寸：2.5mm×2.0mm

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振蕩器,6G無線網絡晶振,Jauch進口晶振,JO22有源晶振,O 40.0-JO22-G-3.3V-1-T1-LF晶振,2520晶振,SMD振蕩器,頻率40MHz,工作溫度-40~85°C,電壓3.3V,低電源電壓晶振,無鉛環保晶振,6G無線網絡晶振,便攜式多媒體設備晶振,網絡終端晶振,智能家居應用晶振.




訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

Jau-1

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振蕩器,6G無線網絡晶振,Jauch進口晶振,JO22有源晶振,O 40.0-JO22-G-3.3V-1-T1-LF晶振,2520晶振,SMD振蕩器,頻率40MHz,工作溫度-40~85°C,電壓3.3V,低電源電壓晶振,無鉛環保晶振,6G無線網絡晶振,便攜式多媒體設備晶振,網絡終端晶振,智能家居應用晶振.

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振蕩器,6G無線網絡晶振特點：

-帶停止功能的SMD振蕩器2.5 x 2.0mm

- LVCMOS / HCMOS兼容輸出

-可變電源電壓1.8伏~ 3.3伏

-極低的電流消耗

-接縫密封陶瓷/金屬封裝


高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振蕩器,6G無線網絡晶振參數表

 型號 JO22
 頻率 40MHz
頻率穩定性 ± 30 ppm
電流消耗 6mA
電源電壓 3.3V
工作溫度 -40°C ~ +85 °C
儲存溫度 -55°C ~ +125°C
上升下降時間 6 ns max. (1.8 V) / 5 ns max. (≥ 2.5 V)
輸出負載 15 pF
最大啟動時間 1 ms / 0.5 ms (t0 when VDC > 1.62 V)
最大待機電流 10 µA (T1) / 20 µA (T2, T3)
相位抖動12 kHz ~ 20.0 MHz < 1.0 ps RMS
0.5 x VDC時的對稱性 45% ~ 55% max. (ref. +25 °C)

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

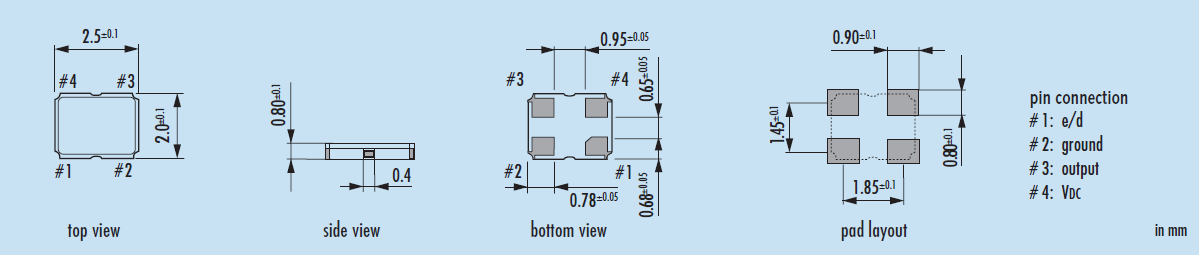

O 40.0-JO22-G-3.3V-1-T1-LF,SMD振蕩器,6G無線網絡晶振尺寸圖

jo22-3.0V-2520 OSC
