ECS-520-8-36B-CTN-TR緊湊型SMD晶體非常適合無線應用

來源：金洛鑫瀏覽：- 發布日期：2023-02-13 15:35:41【大中小】

ECS Inc.晶振集團成為市場領導者提供創新、先進的壓電石英晶體元器件、貼片晶振、有源晶體頻率控制組件解決方案到電信、工業、公用事業、導航、汽車、電子、航空航天和醫療與一流的制造行業的基于石英晶體/過濾器,時鐘振蕩器、陶瓷諧振器/過濾器和其他基于壓電的產品.ECS inc .以迅速擴大的市場部門的多元化產品基礎,熱情關注客戶和市場趨勢,調動企業的力量,為世界各地的客戶提供一貫的卓越服務.

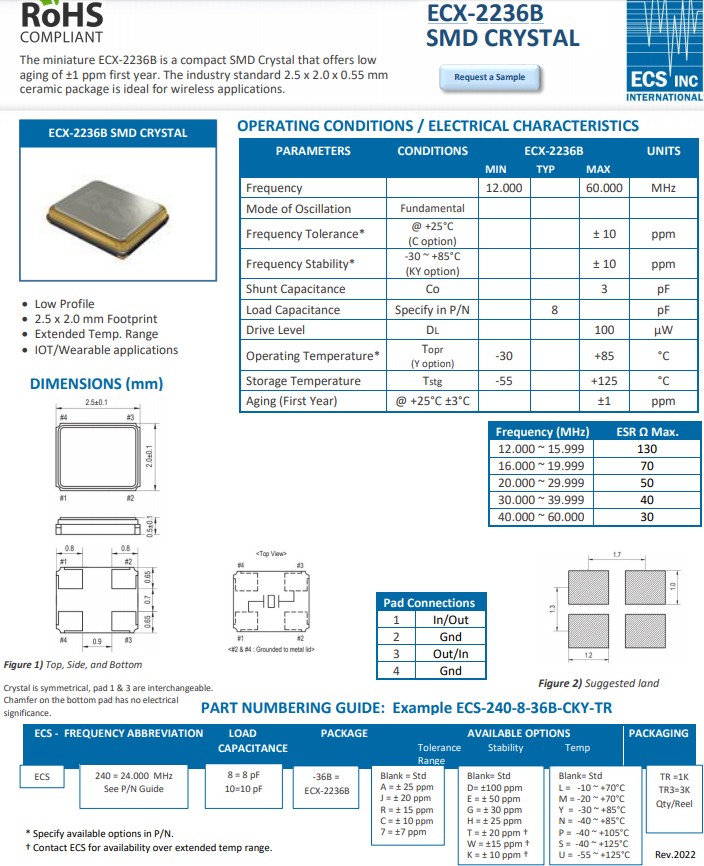

ECS Inc. International的ECX-2236B系列表面貼裝(SMD)石英晶體，采用行業標準的2.5毫米x2.0毫米x0.55毫米4焊盤陶瓷封裝。這些電子元件提供寬頻率范圍，10ppm的緊密穩定性，以及在25°C±3°C時1ppm的低第一年老化，并可選擇擴展溫度范圍。標準ECX-2236B晶體提供10ppm頻率容差和標準范圍的晶體負載電容。該器件非常適合物聯網、無線和可穿戴應用。

ECS-520-8-36B-CTN-TR緊湊型SMD晶體非常適合無線應用

圖片	編碼	頻率	頻率穩定性	工作溫度
	ECS-520-8-36B-CTN-TR	52 MHz	±20ppm	-40°C ~ +85°C
	ECS-540-8-36B-CTN-TR	54 MHz	±20ppm	-40°C ~ +85°C
	ECS-600-8-36B-CTN-TR	60 MHz	±20ppm	-40°C ~ +85°C
	ECS-500-4-36B-CTN-TR	50 MHz	±20ppm	-40°C ~ +85°C
	ECS-250-10-36B-JTN-TR	25 MHz	±20ppm	-40°C ~ +85°C
	ECS-384-10-36B-CWN-TR	38 MHz	±15ppm	-40°C ~ +85°C
	ECS-600-8-37B-CTN-TR	60 MHz	±20ppm	-40°C ~ +85°C

原廠編碼	廠家	無源晶振	頻率	工作溫度	包裝/封裝
ECS-270-8-36CKM-TR	ECS Crystal	ECX-2236	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-8-36CKM-TR	ECS Crystal	ECX-2236	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-8-36CKM-TR	ECS Crystal	ECX-2236	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-8-36CKM-TR	ECS Crystal	ECX-2236	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-8-36CKM-TR	ECS Crystal	ECX-2236	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-8-36CKM-TR	ECS Crystal	ECX-2236	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-300-8-36CKM-TR	ECS Crystal	ECX-2236	30MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-300-8-36CKM-TR	ECS Crystal	ECX-2236	30MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-300-8-36CKM-TR	ECS Crystal	ECX-2236	30MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-8-36CKM-TR	ECS Crystal	ECX-2236	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-8-36CKM-TR	ECS Crystal	ECX-2236	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-8-36CKM-TR	ECS Crystal	ECX-2236	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-320-8-36CKM-TR	ECS Crystal	ECX-2236	32MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-320-8-36CKM-TR	ECS Crystal	ECX-2236	32MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-320-8-36CKM-TR	ECS Crystal	ECX-2236	32MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-200-8-36CKM-TR	ECS Crystal	ECX-2236	20MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-200-8-36CKM-TR	ECS Crystal	ECX-2236	20MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-200-8-36CKM-TR	ECS Crystal	ECX-2236	20MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-400-8-36CKM	ECS Crystal	ECX-2236	40MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-400-8-36CKM	ECS Crystal	ECX-2236	40MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-400-8-36CKM	ECS Crystal	ECX-2236	40MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-192-8-36CKM-TR	ECS Crystal	ECX-2236	19.2MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-192-8-36CKM-TR	ECS Crystal	ECX-2236	19.2MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-192-8-36CKM-TR	ECS Crystal	ECX-2236	19.2MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-260-8-36CKM-TR	ECS Crystal	ECX-2236	26MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-260-8-36CKM-TR	ECS Crystal	ECX-2236	26MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-260-8-36CKM-TR	ECS Crystal	ECX-2236	26MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-480-8-36CKM	ECS Crystal	ECX-2236	48MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-480-8-36CKM	ECS Crystal	ECX-2236	48MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-480-8-36CKM	ECS Crystal	ECX-2236	48MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-200-10-36-JTM-TR	ECS Crystal	ECX-2236	20MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-200-10-36-JTM-TR	ECS Crystal	ECX-2236	20MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-200-10-36-JTM-TR	ECS Crystal	ECX-2236	20MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-300-10-36-JGN-TR	ECS Crystal	ECX-2236	30MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-300-10-36-JGN-TR	ECS Crystal	ECX-2236	30MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-300-10-36-JGN-TR	ECS Crystal	ECX-2236	30MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-160-10-36-JTM-TR	ECS Crystal	ECX-2236	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-10-36-JTM-TR	ECS Crystal	ECX-2236	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-10-36-JTM-TR	ECS Crystal	ECX-2236	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-192-10-36-JGN-TR	ECS Crystal	ECX-2236	19.2MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-192-10-36-JGN-TR	ECS Crystal	ECX-2236	19.2MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-192-10-36-JGN-TR	ECS Crystal	ECX-2236	19.2MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-200-10-36-JGN-TR	ECS Crystal	ECX-2236	20MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-200-10-36-JGN-TR	ECS Crystal	ECX-2236	20MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-200-10-36-JGN-TR	ECS Crystal	ECX-2236	20MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-240-10-36-JTM-TR	ECS晶體	ECX-2236	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-10-36-JTM-TR	ECS Crystal	ECX-2236	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-10-36-JTM-TR	ECS Crystal	ECX-2236	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-10-36-JGN-TR	ECS Crystal	ECX-2236	24MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-240-10-36-JGN-TR	ECS Crystal	ECX-2236	24MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-240-10-36-JGN-TR	ECS Crystal	ECX-2236	24MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-320-10-36-JGN-TR	ECS Crystal	ECX-2236	32MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-320-10-36-JGN-TR	ECS Crystal	ECX-2236	32MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-320-10-36-JGN-TR	ECS Crystal	ECX-2236	32MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-160-10-36-JGN-TR	ECS Crystal	ECX-2236	16MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-160-10-36-JGN-TR	ECS Crystal	ECX-2236	16MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-160-10-36-JGN-TR	ECS Crystal	ECX-2236	16MHz	-40°C ~ 85°C	4-SMD, No Lead
ECS-250-8-36CKM-TR	ECS Crystal	ECX-2236	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-8-36CKM-TR	ECS Crystal	ECX-2236	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-8-36CKM-TR	ECS Crystal	ECX-2236	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-8-36CKM-TR	ECS Crystal	ECX-2236	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-8-36CKM-TR	ECS Crystal	ECX-2236	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-8-36CKM-TR	ECS Crystal	ECX-2236	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead

ECS-520-8-36B-CTN-TR緊湊型SMD晶體非常適合無線應用

特點：
小體積尺寸：2.5x2.0x0.55mm四腳貼片晶振
頻率范圍：12MHz~60MHz石英晶體諧振器
10ppm標準頻率容差，提供7ppm選項
10ppm標準穩定性
低老化，最大1ppm。第一年@ 25℃3℃
標準工作溫度:-30℃～+85℃
提供擴展溫度范圍選項
低ESR
符合RoHS 3和REACH標準
應用于：物聯網，產業的，無線的，移動設備，衣服，Wi-Fi，藍牙
